Interior strips, aluminum, glaciersilber for BMW 3 Series E90 LCI 320i (2011)

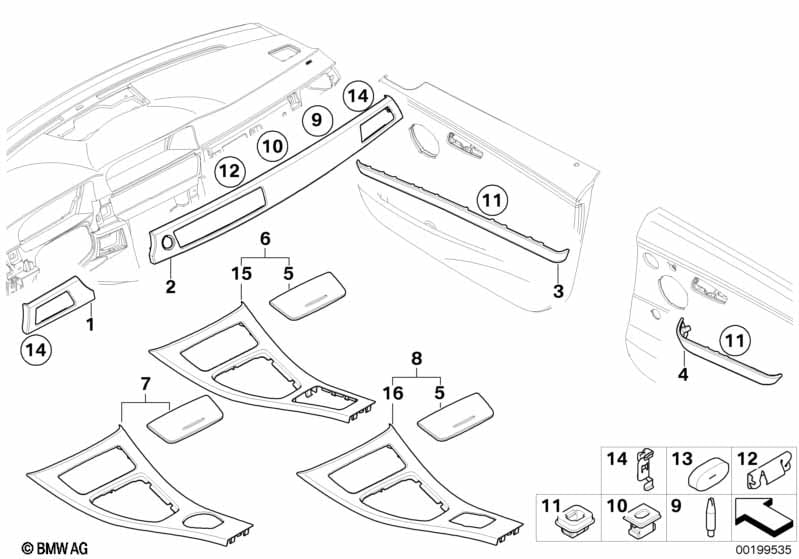

This Interior strips, aluminum, glaciersilber technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 01 | Cover, dashboard, aluminium, left | GLACIER SILBER | 1 | 09/2007 | 51459148067 | $73.84 | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, aluminium, right | GLACIER SILBER | 1 | 09/2007 | 51459148069 | $162.37 | Shop at ECS Tuning | |||
| 03 | Aluminum decor strip, front left door | GLACIER SILBER | 1 | 09/2007 | 51419145407 | $103.98 | Shop at ECS Tuning | |||
| 03 | Aluminum decor strip, front right door | GLACIER SILBER | 1 | 09/2007 | 51419145408 | $103.98 | Shop at ECS Tuning | |||
| 04 | Aluminum decor strip, rear left door | GLACIER SILBER | 1 | 09/2007 | 51429145409 | $81.07 | Shop at ECS Tuning | |||
| 04 | Aluminum decor strip, rear right door | GLACIER SILBER | 1 | 09/2007 | 51429145410 | $81.07 | Shop at ECS Tuning | |||
| 05 | Cover, ashtray/tray alu glacier-silber | GLACIER SILBER | 1 | 09/2007 | 51169145153 | $68.76 | Shop at ECS Tuning | |||
| 06 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2007 | 51169145147 | $200.58 | Shop at ECS Tuning | |||
| 09 | Pin | D=6X22 | 7 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 09 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 7 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 7 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 13 | Gasket, decor panel | 7 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 14 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 15 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2007 | 51169145147 | $200.58 | Shop at ECS Tuning | |||
| For vehicles with Int. mouldings aluminium glacier-silver or On-board monitor with TV or Navigation system Business or Navigation system Professional or Smoker package |
S4MGA=Yes S602A=Yes S606A=Yes S609A=Yes S441A=Yes |
|||||||||
| 16 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2008 | 51167898999 | $200.58 | Shop at ECS Tuning | |||
