Fine woodgrain, high-gloss sycamore for BMW 3 Series E93 M3 (2010)

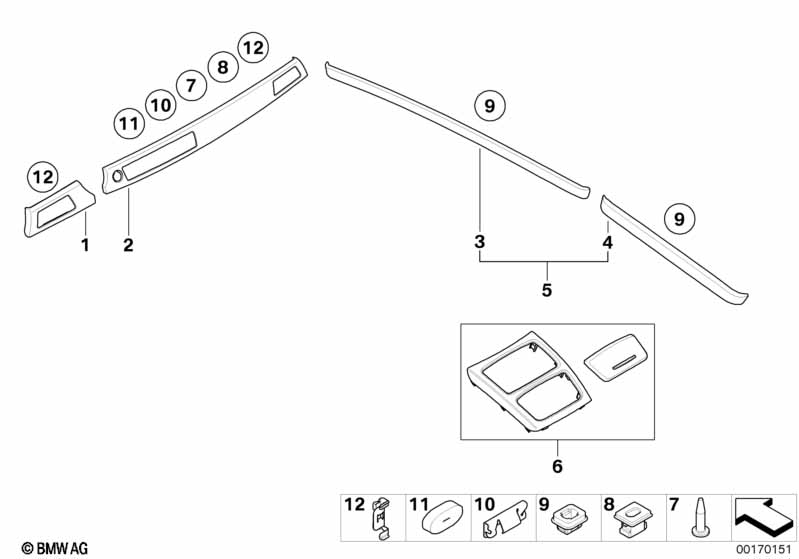

This Fine woodgrain, high-gloss sycamore technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood sycamore mirror gr. anthracite |
S4MZA=Yes |
|||||||||
| 01 | Trim cover, panel, woodgrain, right | PLATANE ANTHR. | 1 | 51457900862 | Shop at ECS Tuning | |||||
| 02 | Trim cover, panel, woodgrain, left | PLATANE ANTHR. | 1 | 51457900863 | Shop at ECS Tuning | |||||
| 03 | Decor strip, left doors | PLATANE ANTHR. | 1 | 51417900843 | $261.76 | +core | Shop at ECS Tuning | |||
| 03 | Decor strip, right doors | PLATANE ANTHR. | 1 | 51417900844 | $261.76 | +core | Shop at ECS Tuning | |||
| 04 | Decorative strip trim panel, rear left | PLATANE ANTHR. | 1 | 51437900847 | $153.97 | +core | Shop at ECS Tuning | |||
| 04 | Decorative strip trim panel, rear right | PLATANE ANTHR. | 1 | 51437900848 | $153.97 | +core | Shop at ECS Tuning | |||
| For vehicles with Int. strips, Alu Shadow, linear polished or Int.trim,leather,carbon struct.,black or Fine wood sycamore mirror gr. anthracite |
S4MXA=Yes S4MYA=Yes S4MZA=Yes |
|||||||||
| 06 | Trim cover, rear console, leather, front | 1 | 51167898825 | $229.81 | Shop at ECS Tuning | |||||
| 07 | Pin | 14 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 08 | Plug-in retainer | 7 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 09 | Plug-in retainer | 7 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 11 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
