Interior mirror for BMW 1 Series E82 128i (2013)

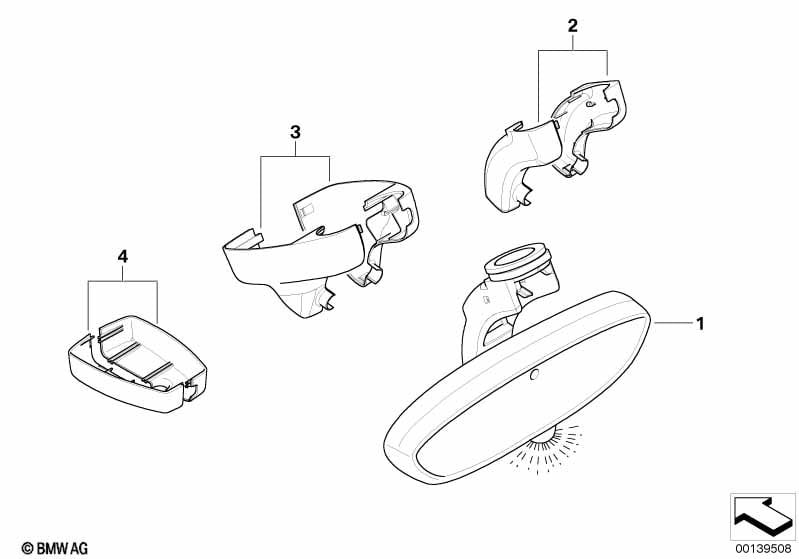

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| For vehicles with High-beam assistant |
S5ACA=Yes |
|||||||||
| 01 | Rearview mirror EC/LED/GTO/compass/FLA | 1 | 09/2009 | 51169225980 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass |
S319A=Yes S4NAA=No |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / remote | 315 MHZ | 1 | 51169174309 | $461.95 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and High-beam assistant |
S319A=No S4NAA=Yes S5ACA=No |
|||||||||
| 01 | Rearview mirror EC / LED / Compass | 1 | 09/2008 | 51169192333 | $666.73 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and High-beam assistant |
S319A=Yes S4NAA=Yes S5ACA=No |
|||||||||
| 01 | Rearview mirror EC/LED/GTO/compass/RC | 315 MHZ | 1 | 51169192321 | $808.17 | Shop at ECS Tuning | ||||
| 01 | Rearview mirror EC / LED / GTO / Compass | 1 | 51169192335 | Shop at ECS Tuning | ||||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and Interior mirror with automatic-dip |
S319A=No S4NAA=No S431A=Yes |
|||||||||
| 01 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with Interior toll mirror for Japan and High-beam assistant and Rain sensor |
S449A=No S5ACA=No S521A=No |
|||||||||
| 02 | Set of covers mirror baseplate | 1 | 51167133655 | $13.17 | Shop at ECS Tuning | |||||
| For vehicles with Interior toll mirror for Japan and High-beam assistant |
S449A=No S5ACA=Yes |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 09/2009 | 51169219140 | Shop at ECS Tuning | ||||
| For vehicles with Interior toll mirror for Japan and High-beam assistant and Rain sensor |
S449A=No S5ACA=No S521A=Yes |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167076129 | $13.17 | Shop at ECS Tuning | ||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169234435 | Shop at ECS Tuning | |||||
