Floor covering for BMW 6 Series G32 GT 620dX (2020)

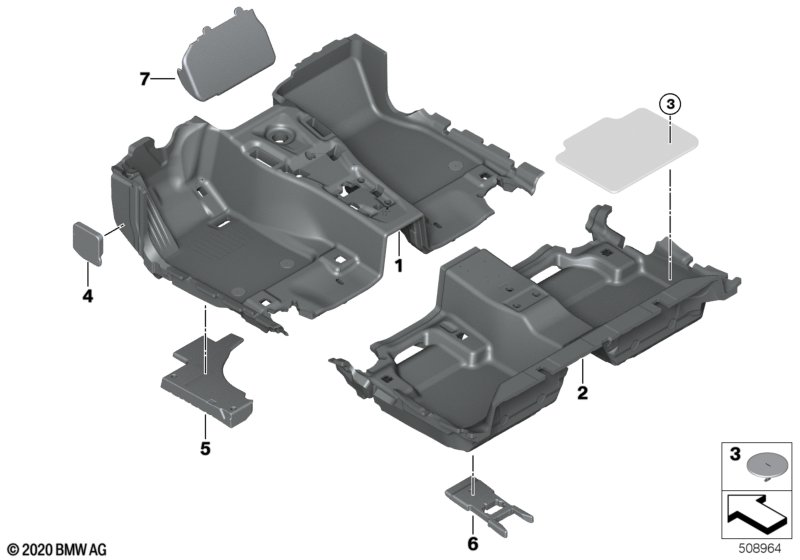

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | SCHWARZ | 1 | 51477445494 | NoS | Shop at ECS Tuning | ||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder |
CY=Yes DO=Yes |
|||||||||
| 01 | Floor trim cover, front | CANBERRABEIGE | 1 | 51477472175 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 02 | Floor covering rear | SCHWARZ | 1 | 51477445490 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=No |
|||||||||
| 02 | Floor covering rear | SCHWARZ | 1 | 51477445489 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4NBA=Yes CY=Yes DO=Yes |
|||||||||
| 02 | Floor covering rear | CANBERRABEIGE | 1 | 51477472171 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4NBA=No CY=Yes DO=Yes |
|||||||||
| 02 | Floor covering rear | CANBERRABEIGE | 1 | 51477472170 | NoS | Shop at ECS Tuning | ||||
| 03 | Hook&loop element with bayonet fastener | D62MM/L14MM | 4 | 07149166609 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Remote control parking |
S5AUA=No S5DFA=No S5DVA=No |
|||||||||
| 04 | Foam insert, left | 1 | 51477355933 | Shop at ECS Tuning | ||||||
| 05 | Foam insert footwell front left | 1 | 51477397789 | Shop at ECS Tuning | ||||||
| 05 | Foam insert footwell front right | 1 | 51477397790 | Shop at ECS Tuning | ||||||
| 06 | Insert for tunnel rear | 1 | 51477419595 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
