Trim and seals for door, rear for BMW MINI Clubman R55 LCI Cooper S

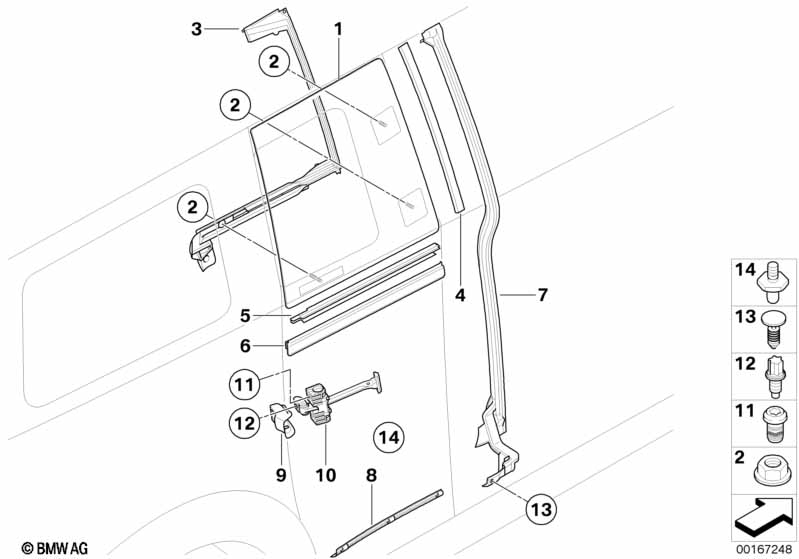

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sliding Clubdoor, green | 1 | 51357167493 | $85.94 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Insert, trim strip, Clubdoor | 1 | 51137167240 | $13.68 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 01 | Sliding Clubdoor, black | 1 | 51357167494 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Insert, trim strip, Clubdoor | 1 | 51137167240 | $13.68 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M6 | 3 | 51717065987 | $0.79 | Shop at ECS Tuning | ||||
| 03 | Seal, B1-pillar | 1 | 51767167232 | $35.00 | Shop at ECS Tuning | |||||
| 04 | Trim cover, B1-pillar | 1 | 51137167236 | $25.01 | Shop at ECS Tuning | |||||
| 05 | Insert, trim strip, Clubdoor | 1 | 51137167240 | $13.68 | Shop at ECS Tuning | |||||
| 06 | Trim strip, Clubdoor | 1 | 51132754060 | $22.73 | Shop at ECS Tuning | |||||
| 07 | Seal, door, B1-pillar | 1 | 51767167230 | $87.46 | Shop at ECS Tuning | |||||
| 08 | Seal, door seam, Clubdoor | 1 | 51717167234 | $17.50 | Shop at ECS Tuning | |||||
| 09 | Seal, door brake, Club door | 1 | 51227167466 | $8.75 | Shop at ECS Tuning | |||||
| 10 | Door brake, Club door | 1 | 51227167465 | $50.57 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt with washer | ISA M6X12 | 2 | 51226976687 | $0.59 | Shop at ECS Tuning | ||||
| 12 | Torx-bolt with washer | ASA M8X22 | 1 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Clip | 1 | 07130561277 | $0.21 | Shop at ECS Tuning | |||||
| 14 | Safety hook | 1 | 41527167464 | $3.32 | Shop at ECS Tuning | |||||
