Glazing for BMW MINI Clubman R55 LCI Cooper S

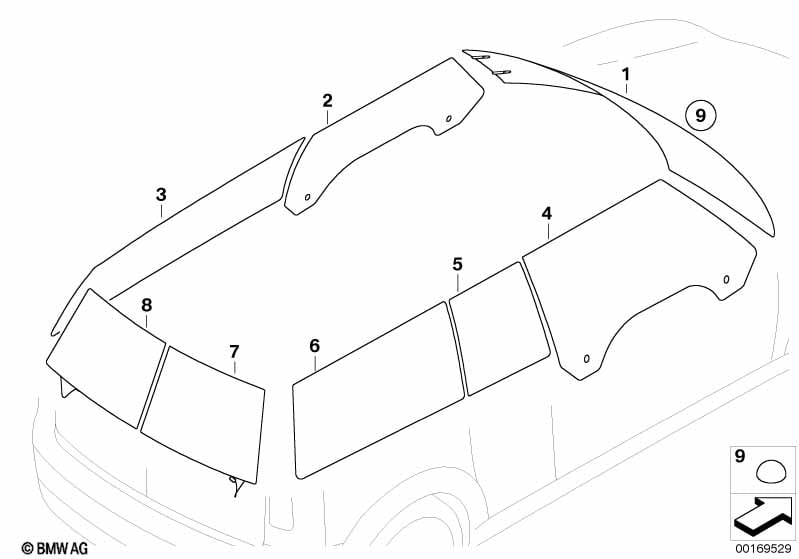

This Glazing technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=No S359A=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, heated | RS | 1 | 51312753976 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Mouting strip, cover, firewall | 1 | 51312756196 | $28.27 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=No S359A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51312753978 | $298.39 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Nut, self-locking | 2 | 07130526444 | $0.16 | Shop at ECS Tuning | |||||
| -- | Rubber buffer | D = 11.1 | 2 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=No S359A=No S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 51312753977 | $329.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Mouting strip, cover, firewall | 1 | 51312756196 | $28.27 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=Yes S359A=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, heated | RS | 1 | 51312753976 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Mouting strip, cover, firewall | 1 | 51312756196 | $28.27 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=Yes S359A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51312753978 | $298.39 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Nut, self-locking | 2 | 07130526444 | $0.16 | Shop at ECS Tuning | |||||
| -- | Rubber buffer | D = 11.1 | 2 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Visibility package and Rain sensor |
L8AAA=Yes S359A=No S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 51312753977 | $329.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Rubber buffer | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Mouting strip, cover, firewall | 1 | 51312756196 | $28.27 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317155304 | $17.60 | Shop at ECS Tuning | |||||
| 02 | Side window, door, green, left | 1 | 51337168063 | $75.30 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window, black left | 1 | 51377167475 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=Yes |
|||||||||
| 03 | Side window, green, left | 1 | 51377167473 | $181.05 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=No |
|||||||||
| 03 | Side window, green, left | 1 | 51377167473 | $181.05 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=No S420A=No |
|||||||||
| 03 | Side window, green, left | 1 | 51377167473 | $181.05 | Shop at ECS Tuning | |||||
| 04 | Side window, door, green, right | 1 | 51337168064 | $75.30 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 05 | Sliding Clubdoor, black | 1 | 51357167494 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=Yes |
|||||||||
| 05 | Sliding Clubdoor, green | 1 | 51357167493 | $85.94 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=No |
|||||||||
| 05 | Sliding Clubdoor, green | 1 | 51357167493 | $85.94 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=No S420A=No |
|||||||||
| 05 | Sliding Clubdoor, green | 1 | 51357167493 | $85.94 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 06 | Side window, black right | 1 | 51377167476 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=Yes |
|||||||||
| 06 | Side window green right | 1 | 51377167474 | $143.22 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=Yes S420A=No |
|||||||||
| 06 | Side window green right | 1 | 51377167474 | $143.22 | Shop at ECS Tuning | |||||
| For vehicles with MINI Clubvan and Sun protection glazing |
PXK1A=No S420A=No |
|||||||||
| 06 | Side window green right | 1 | 51377167474 | $143.22 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 07 | Rear window, black, right | 1 | 51317167456 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 07 | Rear window, green, right | 1 | 51317167454 | $132.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 07 | Rear window, green, right | 1 | 51317167454 | $132.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
|||||||||
| 07 | Rear window, black, right | 1 | 51317167456 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 08 | Rear window, black, left | 1 | 51317167455 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 08 | Rear window, green, left | 1 | 51317167453 | $132.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 08 | Rear window, green, left | 1 | 51317167453 | $132.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
|||||||||
| 08 | Rear window, black, left | 1 | 51317167455 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Insert, trim strip, Splitdoor | 1 | 51137167245 | $11.89 | Shop at ECS Tuning | |||||
| 09 | Rubber buffer | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
