Trim cover, front for BMW 6 Series E64 LCI 635d (2010)

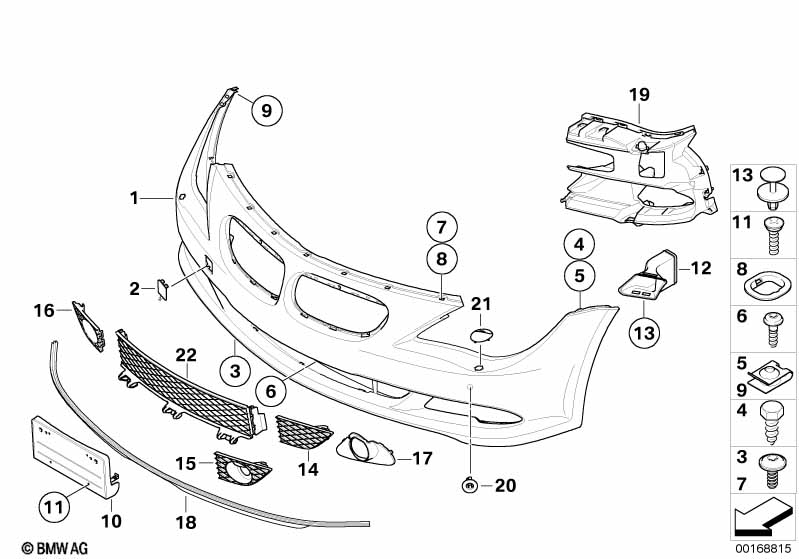

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 09/2007 | 51117184685 | +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Painted front bumper trim | CODE - UNI/MET. | 1 | 09/2007 | 51110442702 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 09/2007 | 51117184686 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) When ordering indicate color code |
S508A=Yes |
|||||||||
| 01 | Painted front bumper trim | CODE - UNI/MET. | 1 | 09/2007 | 51110442703 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Flap, towing eye, primed | 1 | 09/2007 | 51117115705 | $12.39 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 09/2007 | 51110301611 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Oval-head screw with washer | ISA M6X21 | 7 | 09/2007 | 07147263759 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST 6,3 X 25 | 2 | 09/2007 | 07119904935 | $0.53 | Shop at ECS Tuning | |||
| 05 | Body nut | ST 6,3 | 2 | 09/2007 | 07146974736 | $0.38 | Shop at ECS Tuning | |||
| 06 | Fillister head screw | 4 | 09/2007 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | ISA M6X21 | 7 | 09/2007 | 07147187090 | $0.56 | Shop at ECS Tuning | |||
| 08 | Adjusting washer | 1 | 09/2007 | 51117163964 | $0.50 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST6,3-4 ZNS3 | 2 | 09/2007 | 07147144276 | $0.47 | Shop at ECS Tuning | |||
| 10 | Licence plate base primed | 1 | 09/2007 | 51117115711 | $39.42 | +core | Shop at ECS Tuning | |||
| For vehicles with National version japan or Control of number-plate attachment |
L807A=Yes S992A=Yes |
|||||||||
| 10 | Licence plate base primed | 1 | 09/2007 | 51117135928 | $39.07 | +core | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 2 | 09/2007 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| 12 | Front left brake air duct | 1 | 09/2007 | 51117184697 | $28.30 | Shop at ECS Tuning | ||||
| 12 | Front right brake air duct | 1 | 09/2007 | 51117184698 | $28.30 | Shop at ECS Tuning | ||||
| 13 | Expanding rivet | BASALTGRAU HELL | 6 | 09/2007 | 51497054361 | $0.57 | Shop at ECS Tuning | |||
| 14 | Grill, lateral, lower left | 1 | 09/2007 | 51117184691 | $14.60 | Shop at ECS Tuning | ||||
| 14 | Grid lateral, bottom right | 1 | 09/2007 | 51117184692 | $14.60 | Shop at ECS Tuning | ||||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 15 | Grill, lateral, lower left | NIV | 1 | 09/2007 | 51117184693 | $14.60 | Shop at ECS Tuning | |||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 16 | Grid lateral, bottom right | ACC | 1 | 09/2007 | 51117184694 | $14.60 | Shop at ECS Tuning | |||
| 17 | Cover, fog lamp, left | 1 | 09/2007 | 51117055525 | $14.42 | Shop at ECS Tuning | ||||
| 17 | Cover, fog lamp, right | 1 | 09/2007 | 51117055526 | $14.42 | Shop at ECS Tuning | ||||
| 18 | Spoiler front | 1 | 09/2007 | 51117184699 | $23.18 | +core | Shop at ECS Tuning | |||
| 19 | Insert, bumper front left | 1 | 09/2007 | 51117184695 | $31.64 | Shop at ECS Tuning | ||||
| 19 | Insert, bumper front right | 1 | 09/2007 | 51117184696 | $31.64 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 20 | Set of mounts for PDC sensor, front | PDC | 1 | 09/2007 | 51110443135 | $33.93 | +core | Shop at ECS Tuning | ||
| 21 | trim panel left, painted | CODE - UNI/MET. | 1 | 09/2007 | 51110301608 | ENDED, +core | Shop at ECS Tuning | |||
| 21 | trim panel right, painted | CODE - UNI/MET. | 1 | 09/2007 | 51110301609 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 21 | Cover, primed, left | 1 | 09/2007 | 51117115707 | $12.35 | Shop at ECS Tuning | ||||
| 21 | Cover, primed, right | 1 | 09/2007 | 51117115708 | $12.35 | Shop at ECS Tuning | ||||
| 22 | Grid, center | 1 | 09/2007 | 51117184690 | $34.75 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
