Center console for BMW 1 Series E88 118d (2013)

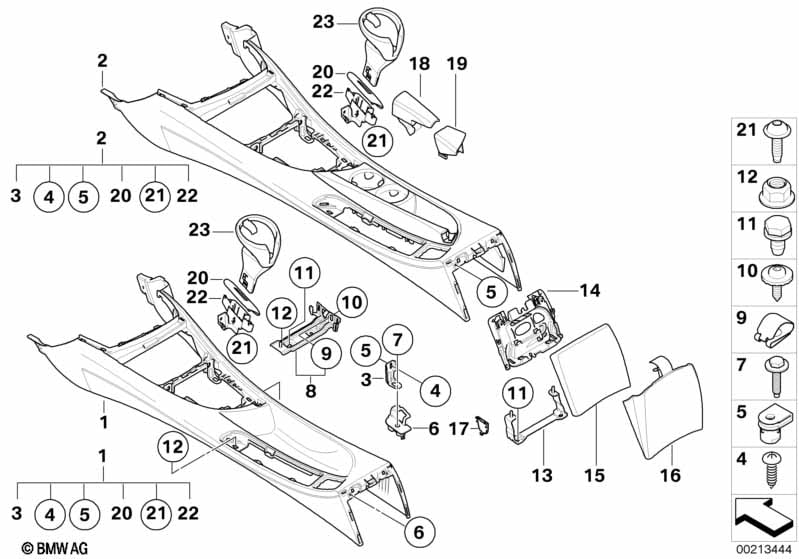

This Center console technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Navigation system Business and Navigation system Professional |
S606A=No S609A=No |
||||||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 01 | Centre console with oddments tray | BEIGE | 1 | 51169193394 | Shop at ECS Tuning | |||||
| with support for cup holder, front | ||||||||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 01 | Centre console with oddments tray | SCHWARZ | 1 | 51169193392 | Shop at ECS Tuning | |||||
| with support for cup holder, front | ||||||||||
| For vehicles with Cup holder or Storage compartment package and beige or lemon/beige |
S442A=Yes S493A=Yes A5=Yes F6=Yes |
|||||||||
| 02 | Centre console with cup holder | BEIGE | 1 | 51169193397 | $141.51 | Shop at ECS Tuning | ||||
| with support for cup holder, front | ||||||||||
| For vehicles with Oddments tray, center console or Storage compartment package and alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
S492A=Yes S493A=Yes AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 02 | Centre console with cup holder | SCHWARZ | 1 | 51169193395 | $146.39 | Shop at ECS Tuning | ||||
| with support for cup holder, front | ||||||||||
| 03 | Bracket, center console front left | 1 | 51167134131 | $2.21 | Shop at ECS Tuning | |||||
| 03 | Bracket, center console front right | 1 | 51167134132 | $2.21 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Plastic nut | 4 | 51417025609 | $2.71 | Shop at ECS Tuning | |||||
| 06 | Adapter,bracket center console front lft | 1 | 51167122337 | $4.30 | Shop at ECS Tuning | |||||
| 06 | Adapter,bracket center console frnt rght | 1 | 51167122338 | $4.25 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X30-LD-SC-U2 | 2 | 07119905136 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Bracket f center console, center | 1 | 51169147053 | $7.00 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | 1 | 07146957147 | $0.47 | Shop at ECS Tuning | |||||
| 10 | Combi. fillister head self-tapping screw | 1 | 07147129778 | $0.71 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 13 | Bracket, center console rear | 1 | 51166962072 | $5.30 | Shop at ECS Tuning | |||||
| 14 | Console insert, rear | 1 | 51167135455 | $6.07 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 15 | Cover centre console, rear | BEIGE | 1 | 51169110482 | $9.94 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NZ=Yes SW=Yes |
|||||||||
| 15 | Cover centre console, rear | SCHWARZ | 1 | 51169110474 | $9.94 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and beige or lemon/beige |
S473A=Yes A5=Yes F6=Yes |
|||||||||
| 16 | Cover, center armrest, rear | BEIGE | 1 | 51169110486 | $14.00 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or schwarz/Kontrast orange or Black |
S473A=Yes AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NZ=Yes SW=Yes |
|||||||||
| 16 | Cover, center armrest, rear | SCHWARZ | 1 | 51169110484 | $14.00 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 17 | Screw cover | BEIGE | 1 | 51169110447 | $1.16 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NZ=Yes SW=Yes |
|||||||||
| 17 | Screw cover | SCHWARZ | 1 | 51169110445 | $1.16 | Shop at ECS Tuning | ||||
| 18 | Lift sleeve for center armrest | 1 | 51167133883 | $2.89 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 19 | Screw cover | BEIGE | 1 | 51167155150 | $6.59 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NZ=Yes SW=Yes |
|||||||||
| 19 | Screw cover | SCHWARZ | 1 | 51167125547 | $6.59 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 20 | Cover, cup holder | BEIGE | 1 | 51169144634 | $23.17 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NZ=Yes SW=Yes |
|||||||||
| 20 | Cover, cup holder | SCHWARZ | 1 | 51169144632 | $23.17 | Shop at ECS Tuning | ||||
| 21 | Fillister head screw with collar | 3X10 | 2 | 61317682091 | $0.88 | Shop at ECS Tuning | ||||
| 22 | Cup holder support, lower section | 1 | 51169122656 | $8.67 | Shop at ECS Tuning | |||||
| 23 | Front CAN holder | 1 | 51169122655 | $39.23 | Shop at ECS Tuning | |||||
