Armrest, centre console for BMW 1 Series E88 120i (2013)

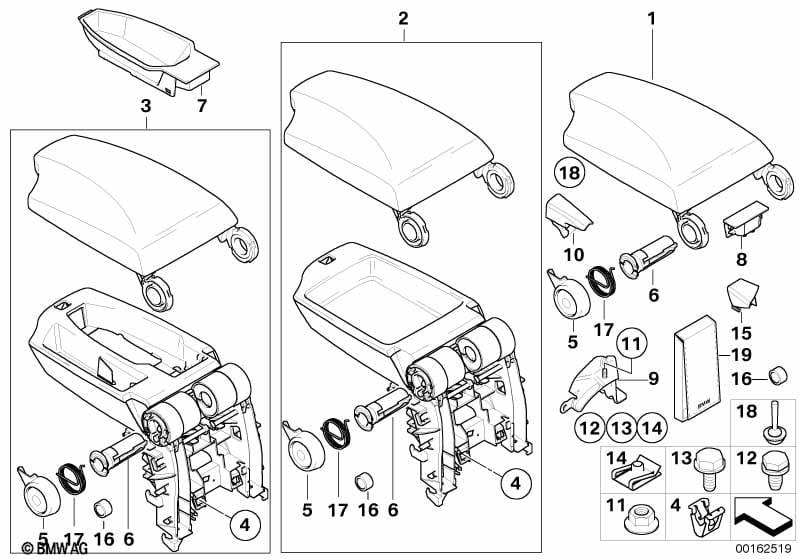

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Armrest front |
S473A=Yes |
||||||||
| For vehicles with lemon/beige |
F6=Yes |
|||||||||
| 01 | Cover, center arm rest | BEIGE | 1 | 51169122578 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 01 | Cover, centre arm rest, leather | ALASKAGRAU | 1 | 51169202354 | Shop at ECS Tuning | |||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 01 | Cover, centre arm rest, leather | BEIGE | 1 | 51169202355 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or Monaco blue or magma-braun or orange/black or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' |
AT=Yes D9=Yes DR=Yes F5=Yes GCNL=Yes GCSW=Yes |
|||||||||
| 01 | Cover, center arm rest | SCHWARZ | 1 | 51169122576 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or beige or lemon or terra or oyster or korall-red or tabak/Kontrast weiss or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AL=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes NV=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 01 | Cover, centre arm rest, leather | SCHWARZ | 1 | 51169202353 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 02 | Center arm rest, leather | ALASKAGRAU | 1 | 51169202348 | Shop at ECS Tuning | |||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 02 | Center arm rest, leather | BEIGE | 1 | 51169202349 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon or terra or oyster or korall-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 02 | Center arm rest, leather | SCHWARZ | 1 | 51169202347 | Shop at ECS Tuning | |||||
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Preparation f teleph.installation Japan and alaska-grey |
S633A=Yes S640A=Yes S644A=Yes S646A=Yes AL=Yes |
|||||||||
| 03 | Cntr arm rest, telephone, leather | ALASKAGRAU | 1 | 51169202342 | Shop at ECS Tuning | |||||
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Preparation f teleph.installation Japan and beige or lemon/beige |
S633A=Yes S640A=Yes S644A=Yes S646A=Yes A5=Yes F6=Yes |
|||||||||
| 03 | Cntr arm rest, telephone, leather | BEIGE | 1 | 51169202343 | Shop at ECS Tuning | |||||
| For vehicles with Preparation, mobile phone, Business or Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth and beige or lemon or terra or oyster or korall-red or perl-grau/Kontrast blau or schwarz/Kontrast weiss or tabak/Kontrast weiss or Leather "Boston"/alaska-grey or Leather, "Boston/black/blue" or Leather "Boston"/ black |
S633A=Yes S639A=Yes S640A=Yes S644A=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes NH=Yes NM=Yes NV=Yes LWAL=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 03 | Cntr arm rest, telephone, leather | SCHWARZ | 1 | 09/2010 | 51169202341 | Shop at ECS Tuning | ||||
| 04 | Clamp | 5 | 07146962323 | $0.86 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 05 | Cover rotational axis, left | ALASKAGRAU | 1 | 51169120575 | $3.61 | Shop at ECS Tuning | ||||
| 05 | Cover rotational axis, right | ALASKAGRAU | 1 | 51169120576 | $3.61 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 05 | Cover rotational axis, left | BEIGE | 1 | 51169120577 | $3.61 | Shop at ECS Tuning | ||||
| 05 | Cover rotational axis, right | BEIGE | 1 | 51169120578 | $3.61 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 05 | Cover rotational axis, left | SCHWARZ | 1 | 51169120573 | $3.61 | Shop at ECS Tuning | ||||
| 05 | Cover rotational axis, right | SCHWARZ | 1 | 51169120574 | $3.61 | Shop at ECS Tuning | ||||
| 06 | Pivot for center armrest | 2 | 51167120176 | $3.02 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal |
S639A=Yes S640A=Yes |
|||||||||
| 07 | Center armrest tray | 1 | 51167140617 | $15.97 | Shop at ECS Tuning | |||||
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth |
S633A=Yes S640A=Yes S644A=Yes |
|||||||||
| 08 | Slot cover Eject box | 1 | 51167140619 | $4.61 | Shop at ECS Tuning | |||||
| 09 | Armrest bracket | 1 | 51169147055 | Shop at ECS Tuning | ||||||
| 10 | Lift sleeve for center armrest | 1 | 51167133883 | $2.89 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 15 | Screw cover | ALASKAGRAU | 1 | 51169121612 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 15 | Screw cover | BEIGE | 1 | 51167155151 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 15 | Screw cover | SCHWARZ | 1 | 51167125551 | Shop at ECS Tuning | |||||
| 16 | Damper rubber | 2 | 51166954117 | $0.71 | Shop at ECS Tuning | |||||
| 17 | Retainer spring left | 1 | 51166954118 | $0.92 | Shop at ECS Tuning | |||||
| 17 | Retainer spring right | 1 | 51166954119 | $0.92 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface |
S6FLA=Yes |
|||||||||
| 19 | Multimedia holder in center console | 1 | 51169148062 | $53.82 | Shop at ECS Tuning | |||||
