Door trim panel, front for BMW 1 Series E82 128i (2013)

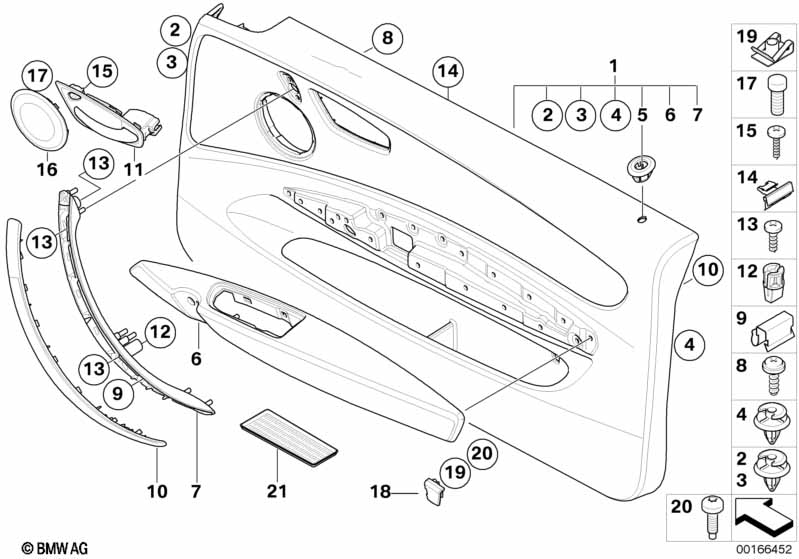

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please observe PuMA measure 34991931 for creaking noises in door trim panel (map pocket) |
|||||||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Door lining leather left | LEMON | 1 | 51419159013 | $760.19 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather right | LEMON | 1 | 51419159014 | $760.19 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 01 | Door lining leather left | KORALLROT | 1 | 51417224377 | $760.19 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | KORALLROT | 1 | 51417224378 | $760.19 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Door lining leather left | BEIGE | 1 | 51417224375 | $760.19 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | BEIGE | 1 | 51417224376 | $760.19 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Door lining leather left | ALASKAGRAU | 1 | 09/2010 | 51417285493 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | ALASKAGRAU | 1 | 09/2010 | 51417285494 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Door lining leather left | TERRA | 1 | 51419159009 | $760.19 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather right | TERRA | 1 | 51419159010 | $760.19 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/oyster |
LWCX=Yes |
|||||||||
| 01 | Door lining leather left | OYSTER | 1 | 03/2011 | 51417293921 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | OYSTER | 1 | 03/2011 | 51417293922 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 01 | Door lining leather left | BEIGE | 1 | 51417224379 | $760.19 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | BEIGE | 1 | 51417224380 | $760.19 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 01 | Door lining leather left | PERLGRAU | 1 | 03/2012 | 51417318593 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | PERLGRAU | 1 | 03/2012 | 51417318594 | NoS | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Door lining vynil left | SCHWARZ | 1 | 51419121301 | $609.00 | +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil right | SCHWARZ | 1 | 51419121302 | $609.00 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 01 | Door lining vynil left | BEIGE | 1 | 51419121303 | $609.00 | +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil right | BEIGE | 1 | 51419121304 | $609.00 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 01 | Door lining leather left | TABAK | 1 | 03/2013 | 51417339343 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | TABAK | 1 | 03/2013 | 51417339344 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather, "Boston/black/blue" or Leather "Boston"/ black |
LWNL=Yes LWSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51417224371 | $760.19 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51417224372 | $760.19 | Shop at ECS Tuning | ||||
| 02 | Clip Natur | 18 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Clip | GRAU | 10 | 51437001492 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Clip beige | 2 | 07147133419 | $4.49 | Shop at ECS Tuning | |||||
| 05 | Cover, locking button left | 1 | 51416975325 | $0.32 | Shop at ECS Tuning | |||||
| 05 | Cover, locking button right | 1 | 51416975326 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Armrest, vinyl, front left | SCHWARZ | 1 | 51416975317 | $108.02 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | SCHWARZ | 1 | 51416975318 | $108.02 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 18 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | BEIGE | 1 | 51419121263 | $108.02 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | BEIGE | 1 | 51419121264 | $108.02 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 18 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Door handle, inside, left | SCHWARZ | 1 | 51416975351 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Door handle, inside, right | SCHWARZ | 1 | 51416975352 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 07 | Door handle, inside, left | BEIGE | 1 | 51419121183 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Door handle, inside, right | BEIGE | 1 | 51419121184 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt for plastic material | ISA 4X12MM | 48 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Clamp / wiring holder | 10 | 07147127892 | $0.38 | Shop at ECS Tuning | |||||
| 10 | Trim, inner dr handle, satinsilber, left | 1 | 09/2008 | 51417230685 | Shop at ECS Tuning | |||||
| 10 | Trim, inner dr handle, satinsilber, rt | 1 | 09/2008 | 51417230686 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 10 | Trim, int dr handle, high-gloss black, L | 1 | 51416987537 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, high-gloss black, R | 1 | 51416987538 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings alpin-weiss |
S4DHA=Yes |
|||||||||
| 10 | Cover, inner door handle,alpin-weiss lft | 1 | 03/2011 | 51419241207 | Shop at ECS Tuning | |||||
| 10 | Cover, inner door handle,alpin-weiss rgt | 1 | 03/2011 | 51419241208 | Shop at ECS Tuning | |||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 10 | Trim int dr handle, alu glaciersil. left | 1 | 51418037455 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim int dr handle alu glaciersil. right | 1 | 51418037456 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 10 | Trim, int dr handle, gray poplar, left | 1 | 51419140361 | $134.87 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, gray poplar, right | 1 | 51419140362 | $134.87 | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings kaschmir-silver |
S4B1A=Yes |
|||||||||
| 10 | Trim, int dr handle, kaschmir-silber L | 1 | 51416978139 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, kaschmir-silber R | 1 | 51416978140 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim Fineline Stream |
S4DPA=Yes |
|||||||||
| 10 | Trim, inside handle, Fineline Stream LFT | 1 | 03/2013 | 51417339353 | NoS | Shop at ECS Tuning | ||||
| 10 | Trim, inside handle, Fineline Stream RGT | 1 | 03/2013 | 51417339354 | Shop at ECS Tuning | |||||
| 11 | Door handle, inside left | SCHWARZ | 1 | 51416978137 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Door handle inner right | SCHWARZ | 1 | 51416978138 | $17.32 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 11 | Door handle, inside left | BEIGE | 1 | 51419121185 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Door handle inner right | BEIGE | 1 | 51419121186 | $17.32 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | 8X11,7X2 | 4 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw with collar | ISA 35X5 | 4 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 14 | Clamp | 12 | 51419123509 | $0.54 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt for plastic material | 4X14 ZNT | 4 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 16 | Trim, mid-range speaker left | BEIGE | 1 | 51419121187 | $10.51 | Shop at ECS Tuning | ||||
| 16 | Trim, mid-range speaker right | BEIGE | 1 | 51419121188 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system and beige or lemon/beige |
S676A=Yes S677A=Yes S688A=Yes A5=Yes F6=Yes |
|||||||||
| 16 | Trim, mid-range speaker left | BEIGE | 1 | 51419121189 | $10.51 | Shop at ECS Tuning | ||||
| 16 | Trim, mid-range speaker right | BEIGE | 1 | 51419121190 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes SW=Yes |
|||||||||
| 16 | Trim, mid-range speaker left | SCHWARZ | 1 | 51416975347 | $10.51 | Shop at ECS Tuning | ||||
| 16 | Trim, mid-range speaker right | SCHWARZ | 1 | 51416975348 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system and alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or Black |
S676A=Yes S677A=Yes S688A=Yes AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes SW=Yes |
|||||||||
| 16 | Trim, mid-range speaker left | SCHWARZ | 1 | 51416975349 | $10.51 | Shop at ECS Tuning | ||||
| 16 | Trim, mid-range speaker right | SCHWARZ | 1 | 51416975350 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Threaded bolt | 6 | 51417122657 | $1.11 | Shop at ECS Tuning | |||||
| 18 | Cover for map pocket, left | SCHWARZ | 1 | 51416975691 | $1.92 | Shop at ECS Tuning | ||||
| 18 | Cover for map pocket, right | SCHWARZ | 1 | 51416975692 | $1.92 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 18 | Cover for map pocket, left | BEIGE | 1 | 51419121359 | $1.92 | Shop at ECS Tuning | ||||
| 18 | Cover for map pocket, right | BEIGE | 1 | 51419121360 | $1.92 | Shop at ECS Tuning | ||||
| 19 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 20 | Lens screw with base | 2 | 07146977741 | $0.25 | Shop at ECS Tuning | |||||
| 21 | Insert mat, door pocket, left | SCHWARZ | 1 | 51419120155 | $5.73 | Shop at ECS Tuning | ||||
| 21 | Insert mat, door pocket, right | SCHWARZ | 1 | 51419120156 | $5.64 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 21 | Insert mat, door pocket, left | BEIGE | 1 | 51419143433 | $5.64 | Shop at ECS Tuning | ||||
| 21 | Insert mat, door pocket, right | BEIGE | 1 | 51419143434 | $5.64 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
