Trim panel leg room for BMW 1 Series E87 LCI 118d (2011)

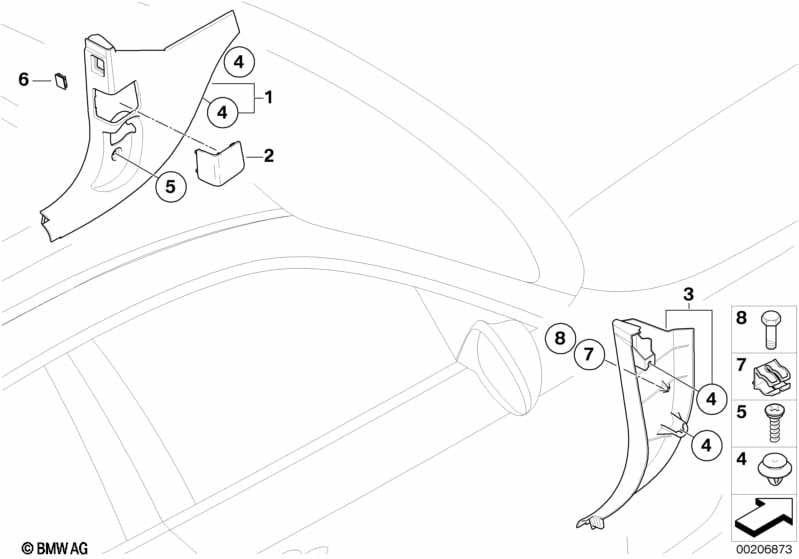

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 01 | Lateral trim panel front right | BEIGE | 1 | 51477121046 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 01 | Lateral trim panel front right | SCHWARZ | 1 | 51477121042 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 02 | OBD plug cover | BEIGE | 1 | 51437144971 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 02 | OBD plug cover | SCHWARZ | 1 | 51437144969 | Shop at ECS Tuning | |||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 03 | Lateral trim panel front left | BEIGE | 1 | 51477121045 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 03 | Lateral trim panel front left | SCHWARZ | 1 | 51477121041 | Shop at ECS Tuning | |||||
| 04 | Clip | 4 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 05 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with National version England / Ireland and beige |
L812A=Yes A5=Yes |
|||||||||
| 06 | Cover | BEIGE | 1 | 51487129941 | Shop at ECS Tuning | |||||
| For vehicles with National version England / Ireland and alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or Black |
L812A=Yes AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes SW=Yes |
|||||||||
| 06 | Trim cover for button | SCHWARZ | 1 | 51437110827 | $0.71 | Shop at ECS Tuning | ||||
