Left trunk trim for BMW 1 Series E81 116d (2011)

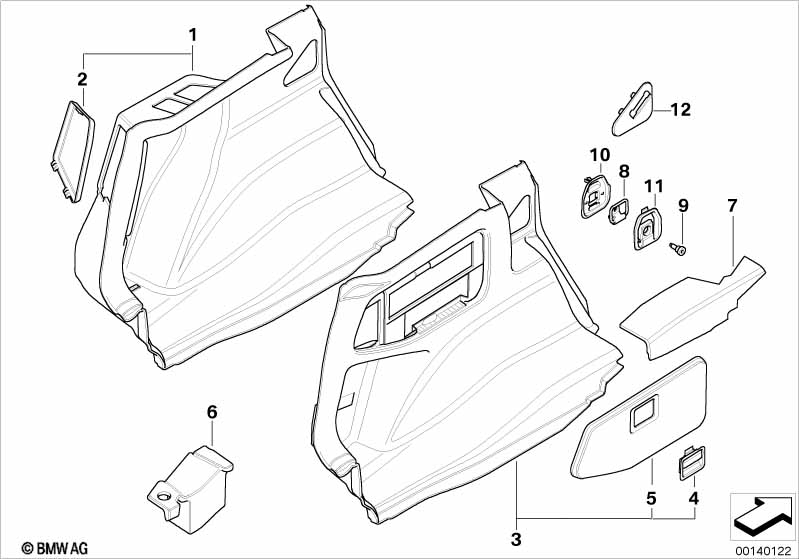

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left trunk trim | 1 | 51477144897 | +core | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | Left trunk trim | 1 | 51477123497 | +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Left trunk trim | 1 | 51477145957 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and HiFi speaker system |
S493A=Yes S676A=Yes |
|||||||||
| 01 | Left trunk trim | 1 | 51477149719 | +core | Shop at ECS Tuning | |||||
| 02 | Left tail light cover | 1 | 51477070547 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs or HiFi System Professional DSP or Provisions for BMW 6 CD changer |
S672A=Yes S677A=Yes S694A=Yes |
|||||||||
| 03 | Left trunk trim | 1 | 51477059243 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and CD changer for 6 CDs and HiFi System Professional DSP and Provisions for BMW 6 CD changer |
S493A=Yes S672A=Yes S677A=No S694A=No |
|||||||||
| 03 | Left trunk trim | 1 | 51477144899 | +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and CD changer for 6 CDs and HiFi System Professional DSP and Provisions for BMW 6 CD changer |
S493A=Yes S672A=No S677A=Yes S694A=No |
|||||||||
| 03 | Left trunk trim | 1 | 51477144899 | +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and CD changer for 6 CDs and HiFi System Professional DSP and Provisions for BMW 6 CD changer |
S493A=Yes S672A=No S677A=No S694A=Yes |
|||||||||
| 03 | Left trunk trim | 1 | 51477144899 | +core | Shop at ECS Tuning | |||||
| 04 | Handle, lateral trunk trim panel | 1 | 51477124457 | $3.34 | Shop at ECS Tuning | |||||
| 05 | Covering audio components | 1 | 51477139386 | +core | Shop at ECS Tuning | |||||
| 06 | Pad, trunk trim panel left | 1 | 09/2007 | 51477059239 | Shop at ECS Tuning | |||||
| 07 | Pad, side member, left | 1 | 51477141097 | $5.37 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 08 | Tie-down ring | 1 | 51477129196 | $7.23 | Shop at ECS Tuning | |||||
| 09 | Socket head cap screw with shoulder | 1 | 51477130768 | $1.09 | Shop at ECS Tuning | |||||
| 10 | Cover, fastening loop | SCHWARZ | 1 | 51477132893 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Cover fastening loop | SCHWARZ | 1 | 51477129652 | $1.08 | Shop at ECS Tuning | ||||
| 12 | Cover seat-back clip, left | SCHWARZ | 1 | 51477133707 | $2.29 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
