Sound insulating front for BMW 1 Series E88 120d (2013)

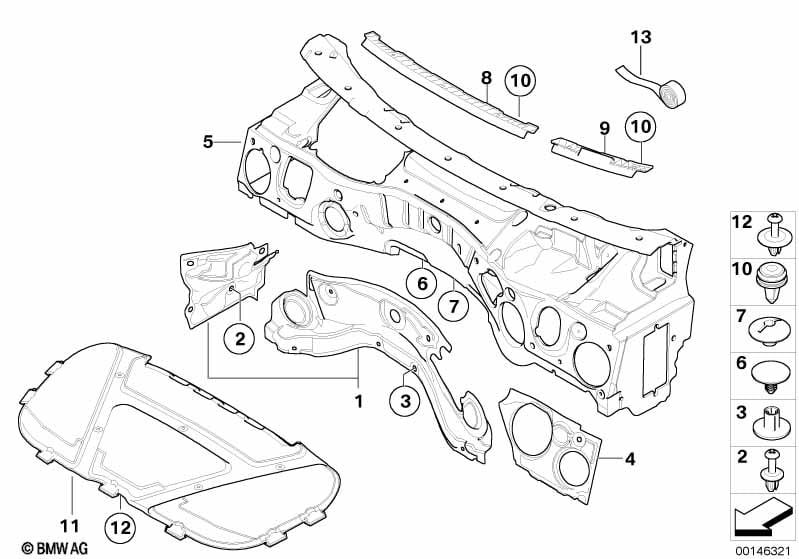

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation set front-/partit. wall | 1 | 51486961211 | $110.48 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D=11,3 | 8 | 51717548693 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Clip nut | 5X9 D=30 SW10 | 2 | 07147261260 | Shop at ECS Tuning | |||||
| 04 | Sound insulat.dash panel engine room L. | 1 | 51487059345 | $8.02 | Shop at ECS Tuning | |||||
| 04 | Sound insulat.dash panel engine room R. | 1 | 51487059346 | $8.02 | Shop at ECS Tuning | |||||
| 05 | Sound insulat., splash wall, upper part | 1 | 51487110625 | Shop at ECS Tuning | ||||||
| 06 | Plug, black | D=5MM | 2 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Push-button, gray | 11 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Hold.-down elem.,sound insul.,fr.bulkh. | 1 | 51487058197 | $4.18 | Shop at ECS Tuning | |||||
| 09 | Hold.-dwn el.,sound ins.,fr.bulkh.,left | 1 | 51487075627 | $4.18 | Shop at ECS Tuning | |||||
| 09 | Hold.-dwn el.,sound ins., fr.bulkh.,rgh | 1 | 51487075628 | $4.18 | Shop at ECS Tuning | |||||
| For vehicles with National version England / Ireland and Car ident. number visible from outside |
L812A=Yes S8SMA=Yes |
|||||||||
| 09 | Hold.-dwn el.,sound ins.,fr.bulkh.,left | 1 | 51486965249 | $5.52 | Shop at ECS Tuning | |||||
| 10 | Clip | 7 | 51488252749 | $0.69 | Shop at ECS Tuning | |||||
| 11 | Sound insulating engine hood | 1 | 51489141036 | $89.62 | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | D=7,5MM | 5 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | NoS | Shop at ECS Tuning | ||||
