Sound insulating rear for BMW 1 Series E82 120i (2013)

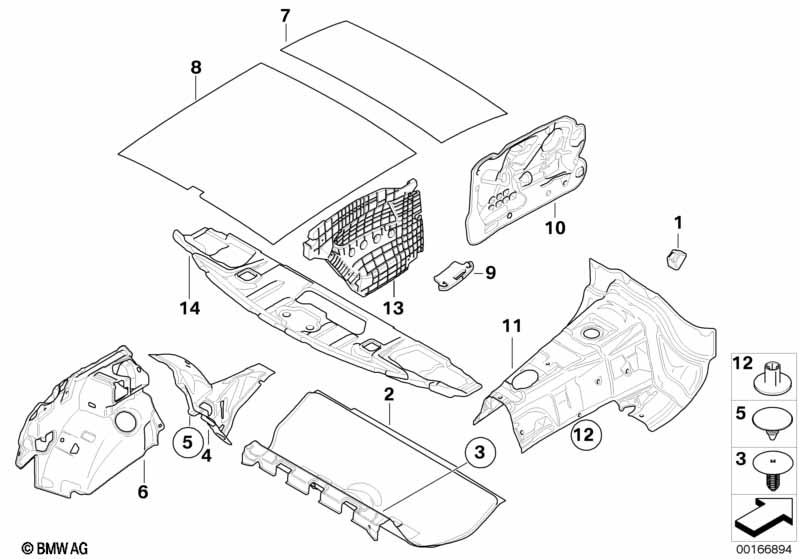

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulat., accelerator pedal mod. | 1 | 51487221980 | Shop at ECS Tuning | ||||||
| 02 | Sound insulation floor rear | 1 | 51487058127 | $22.95 | Shop at ECS Tuning | |||||
| 03 | Clip | D=30MM | 3 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Sound insulating wheel housing rear left | 1 | 51489126489 | $15.18 | Shop at ECS Tuning | |||||
| 04 | Sound insulating wheel housing rear rig. | 1 | 51489126490 | $15.18 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and HiFi speaker system and HiFi System Professional DSP |
S606A=No S609A=No S676A=No S677A=No |
|||||||||
| 05 | Plug, black | D=6,35MM | 1 | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| 06 | Sound insulation trunk left | 1 | 51482996199 | $22.30 | Shop at ECS Tuning | |||||
| 06 | Sound insulation trunk right | 1 | 51482996200 | $22.30 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=No |
|||||||||
| 07 | Sound insulating roof front | 1 | 51487058351 | $13.05 | Shop at ECS Tuning | |||||
| 08 | Sound insulation roof | 1 | 51487260530 | Shop at ECS Tuning | ||||||
| 09 | Sound insulation, B-piller | 2 | 51482996123 | $4.78 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sound insulation, door left | 1 | 51487190335 | $17.63 | Shop at ECS Tuning | |||||
| 10 | Sound insulation, door right | 1 | 51487190336 | $17.63 | Shop at ECS Tuning | |||||
| 11 | Sound insulation, tunnel | 1 | 51486961212 | $152.88 | Shop at ECS Tuning | |||||
| 12 | Clip nut | 5X15 D=30 SW10 | 10 | 07147139081 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Noise insulation f. side trim, rear left | 1 | 51432996195 | $24.02 | Shop at ECS Tuning | |||||
| 13 | Noise insulation f. side trim,rear right | 1 | 51432996196 | $24.02 | +core | Shop at ECS Tuning | ||||
| 14 | Sound insulation for upper partit.trunk | 1 | 51482996114 | $55.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 120i Sound insulating rear?
- This technical diagram illustrates the Sound insulating rear within the Vehicle trim group for the 1 Series E82 120i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulat., accelerator pedal mod. (Part #51487221980).
- Which models use the hardware listed in this Sound insulating rear?
- The hardware and components featured in the Sound insulating rear are specific to the 1 Series E82 120i produced during 2013. These technical specifications ensure that parts like the Sound insulat., accelerator pedal mod. (51487221980) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating rear assembly?
- Each item in the Sound insulating rear corresponds to the numbered list below the illustration. For the 1 Series E82 120i, you can identify the Sound insulat., accelerator pedal mod. by locating its position on the schematic, which then links to the official BMW part number 51487221980 for the Vehicle trim section.
