Strut brace for BMW 1 Series E82 135i (2013)

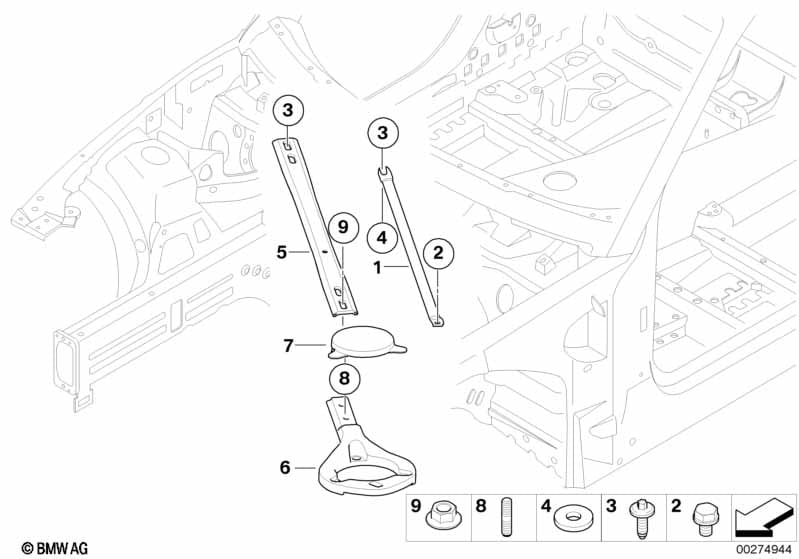

This Strut brace technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring dome strut, left | 1 | 51617167643 | $14.52 | Shop at ECS Tuning | |||||
| 01 | Spring dome strut, right | 1 | 51617167644 | $14.52 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | M10X16-10.9- | 2 | 07146963730 | $1.53 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt with circlip | M12X1.5X39 | 1 | 07146954965 | $2.78 | Shop at ECS Tuning |
