Door trim panel, side air bag for BMW 6 Series E64 LCI 635d (2010)

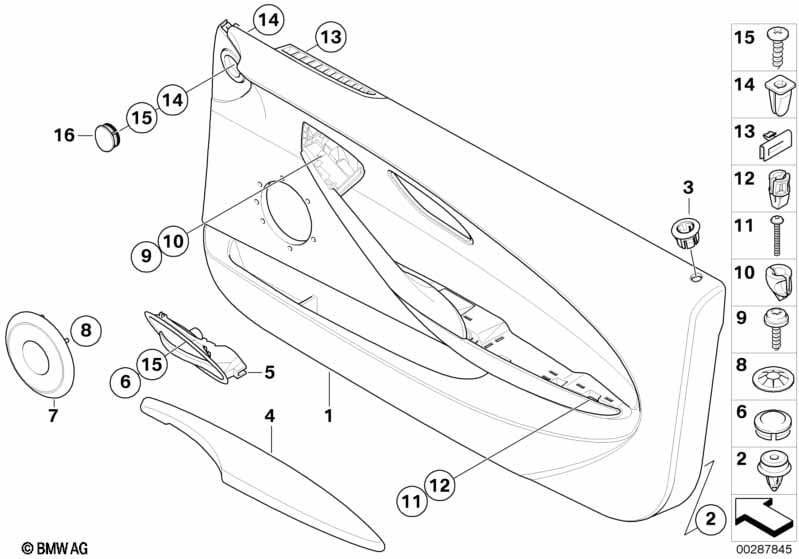

This Door trim panel, side air bag technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 01 | Door lining cloth left | ANTHRAZIT | 1 | 51419150461 | $1089.21 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | ANTHRAZIT | 1 | 51419150468 | $1089.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51419138407 | $965.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather right | SCHWARZ | 1 | 51419138410 | $965.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Door lining leather left | CREAMBEIGE | 1 | 51419134721 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather right | CREAMBEIGE | 1 | 51419134732 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51419138403 | $965.35 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51419138406 | $965.35 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 01 | Door lining leather left | CHATEAU | 1 | 51419134715 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather right | CHATEAU | 1 | 51419134724 | $965.35 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/sattel-brown |
LED5=Yes |
|||||||||
| 01 | Door lining leather left | SATTELBRAUN | 1 | 51419134739 | $965.35 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SATTELBRAUN | 1 | 51419134746 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/chateau |
LECH=Yes |
|||||||||
| 01 | Door lining leather left | CHATEAU | 1 | 51419134735 | $965.35 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather right | CHATEAU | 1 | 51419134742 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 01 | Door lining leather left | CREAMBEIGE | 1 | 51419134737 | $965.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather right | CREAMBEIGE | 1 | 51419134744 | $965.35 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Clip with seal ring | GRAU | 11 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 03 | Cover, locking button left | SCHWARZ | 1 | 51417145411 | $0.71 | Shop at ECS Tuning | ||||
| 03 | Cover, locking button right | SCHWARZ | 1 | 51417145412 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Pearl/Precision" |
LE=Yes |
|||||||||
| 04 | Soft pad armrest, door left | SCHWARZ | 1 | 51419138411 | $212.21 | +core | Shop at ECS Tuning | |||
| 04 | Soft pad armrest, door right | SCHWARZ | 1 | 51419138412 | $212.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" |
LC=Yes |
|||||||||
| 04 | Soft pad armrest, door left | SCHWARZ | 1 | 51419138413 | $140.90 | +core | Shop at ECS Tuning | |||
| 04 | Soft pad armrest, door right | SCHWARZ | 1 | 51419138414 | $140.90 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Finolino/Dakota" |
FC=Yes |
|||||||||
| 04 | Soft pad armrest, door left | SCHWARZ | 1 | 51416974171 | $38.78 | +core | Shop at ECS Tuning | |||
| 04 | Soft pad armrest, door right | SCHWARZ | 1 | 51416974172 | $38.78 | +core | Shop at ECS Tuning | |||
| 05 | Door handle, inside left | SCHWARZ | 1 | 51416960889 | $56.02 | Shop at ECS Tuning | ||||
| 05 | Door handle inner right | SCHWARZ | 1 | 51416960890 | $56.02 | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 05 | Door handle, inside left | SCHWARZ | 1 | 51416960899 | $57.31 | ENDED | Shop at ECS Tuning | |||
| 05 | Door handle inner right | SCHWARZ | 1 | 51416960900 | $57.31 | Shop at ECS Tuning | ||||
| 06 | Cover plug | SCHWARZ | 2 | 51217899611 | $2.89 | Shop at ECS Tuning | ||||
| 07 | Cover loudspeaker left | SCHWARZ | 1 | 51416978047 | $25.62 | Shop at ECS Tuning | ||||
| 07 | Cover loudspeaker right | SCHWARZ | 1 | 51416978048 | $25.62 | +core | Shop at ECS Tuning | |||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 07 | Cover loudspeaker left | TITAN II | 1 | 51418045687 | $46.60 | Shop at ECS Tuning | ||||
| 07 | Cover loudspeaker right | TITAN II | 1 | 51418045688 | $46.60 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Spring nut | X | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | K50X25MM | 4 | 51169158228 | $0.81 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | 4 | 07147111104 | $0.91 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | L=30 | 4 | 07149149259 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | 10X 9,7X 2,1 | 4 | 51417028573 | $0.79 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Clamp | 1,8MM | 10 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| 14 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapp.screw w collar | ST4,2X16MM | 2 | 63212754322 | $0.14 | Shop at ECS Tuning | ||||
| 16 | Cover plug, left | SCHWARZ | 1 | 51417142057 | $1.34 | Shop at ECS Tuning | ||||
| 16 | Cover plug, right | SCHWARZ | 1 | 51417142058 | $1.34 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
