Decorative strips for BMW 6 Series E63 LCI 650i (2010)

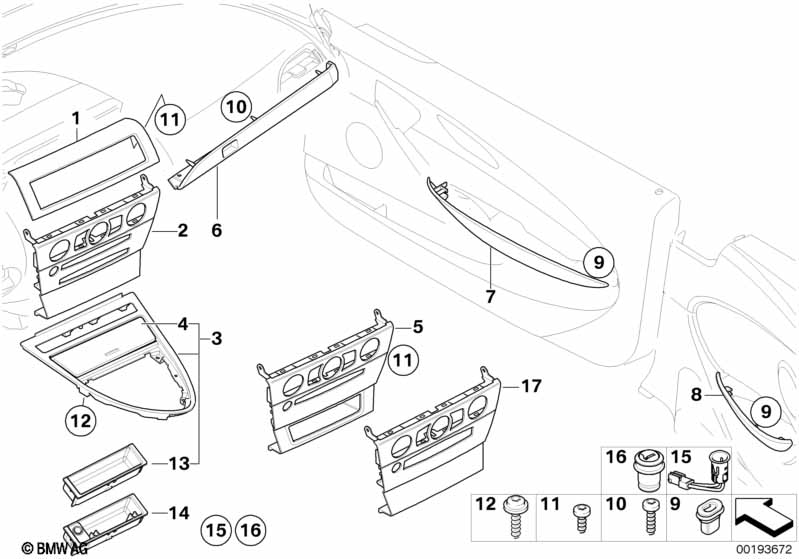

This Decorative strips technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 01 | Decor panel, fresh air grille, center | ALU FEINSCHLIFF | 1 | 64229111674 | $323.04 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 01 | Decor panel, fresh air grille, center | RUTHENIUM | 1 | 64229173216 | $333.28 | Shop at ECS Tuning | ||||
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 03 | Decor panel for centre console | ALU FEINSCHLIFF | 1 | 51169111683 | $176.90 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 03 | Decor panel for centre console | RUTHENIUM | 1 | 51169171638 | $169.86 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 04 | Decor panel for ashtray | ALU FEINSCHLIFF | 1 | 51169111684 | $35.01 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 04 | Decor panel for ashtray | RUTHENIUM | 1 | 51169173217 | $35.01 | Shop at ECS Tuning | ||||
| For vehicles with Alum. interior strips ground lengthwise Only suitable for cars with MASK |
S4BKA=Yes |
|||||||||
| 05 | Decor cover for instrument panel, center | ALU FEINSCHLIFF | 1 | 51459111480 | $159.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers Only suitable for cars with MASK |
S434A=Yes |
|||||||||
| 05 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 51459171637 | $121.91 | Shop at ECS Tuning | ||||
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 06 | Decorative strip, dashboard right | ALU FEINSCHLIFF | 1 | 51459111667 | $127.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 06 | Decorative strip, dashboard right | RUTHENIUM | 1 | 51459171961 | $130.67 | Shop at ECS Tuning | ||||
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 07 | Aluminum decor strip, front left door | ALU FEINSCHLIFF | 1 | 51416960897 | $112.47 | Shop at ECS Tuning | ||||
| 07 | Aluminum decor strip, front right door | ALU FEISCHLIFF | 1 | 51416960898 | $112.47 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 07 | Decorative strip, door front left | RUTHENIUM | 1 | 51419171469 | $70.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Decorative strip, door front right | RUTHENIUM | 1 | 51419171470 | $70.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Alum. interior strips ground lengthwise |
S4BKA=Yes |
|||||||||
| 08 | Decorative strip trim panel, rear left | ALU FEINSCHLIFF | 1 | 51436960891 | $98.98 | +core | Shop at ECS Tuning | |||
| 08 | Decorative strip trim panel, rear right | ALU FEINSCHLIFF | 1 | 51436960892 | $98.98 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 08 | Decorative strip trim panel, rear left | RUTHENIUM | 1 | 51439171471 | $48.47 | ENDED | Shop at ECS Tuning | |||
| 08 | Decorative strip trim panel, rear right | RUTHENIUM | 1 | 51439171472 | $48.47 | ENDED | Shop at ECS Tuning | |||
| 09 | Plug-in retainer | X | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | 3 | 07147119497 | Shop at ECS Tuning | ||||||
| 11 | Fillister head self-tapping screw | ST4,2X12MM | 6 | 07149128048 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ISA ST4.2X13 | 6 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Storing partition front | 1 | 51168208369 | $18.21 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 14 | Front ashtray insert | 1 | 51168208722 | $18.21 | Shop at ECS Tuning | |||||
| 15 | Cigarette lighter socket | 2 POL. | 1 | 61346977681 | $12.75 | Shop at ECS Tuning | ||||
| 16 | Lighter element | 1 | 61349308246 | Shop at ECS Tuning | ||||||
| For vehicles with Alum. interior strips ground lengthwise Only suitable for cars with CCC |
S4BKA=Yes |
|||||||||
| 17 | Decor cover for instrument panel, center | ALU FEINSCHLIFF | 1 | 09/2008 | 51459171194 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers Only suitable for cars with CCC |
S434A=Yes |
|||||||||
| 17 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 09/2008 | 51459171193 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
