Lateral trim panel rear for BMW 6 Series E63 LCI 635d (2010)

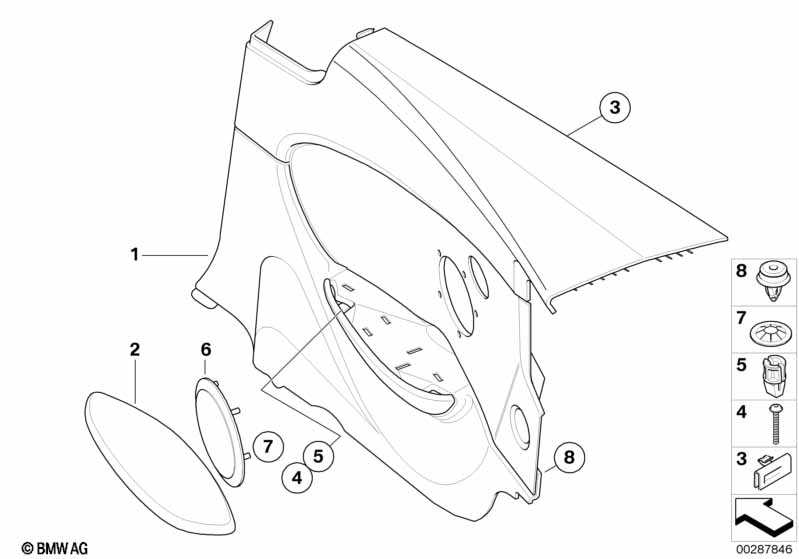

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CHATEAU | 1 | 51439150517 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CHATEAU | 1 | 51439150518 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439150523 | $522.06 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439150524 | $522.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/sattel-brown |
LED5=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SATTELBRAUN | 1 | 51439150531 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | SATTELBRAUN | 1 | 51439150532 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/chateau |
LECH=Yes |
|||||||||
| 01 | Trim panel cloth rear left | CHATEAU | 1 | 51439150529 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | CHATEAU | 1 | 51439150530 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51439150505 | $264.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51439150506 | $264.79 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439150515 | $478.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439150516 | $478.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CREAMBEIGE | 1 | 51439150525 | $522.06 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CREAMBEIGE | 1 | 51439150526 | $522.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CREAMBEIGE | 1 | 51439150519 | $478.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CREAMBEIGE | 1 | 51439150520 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP and Fabr./leath. "Finolino/Dakota"/anthrazit |
S677A=Yes FCAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51439150535 | $264.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51439150536 | $264.79 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Pearl/Precision"/schwarz |
S677A=Yes S752A=Yes LESW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439150549 | $522.06 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439150550 | $522.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Pearl/Precision"/chateau |
S677A=Yes S752A=Yes LECH=Yes |
|||||||||
| 01 | Trim panel cloth rear left | CHATEAU | 1 | 51439150555 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | CHATEAU | 1 | 51439150556 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/chateau |
S677A=Yes S752A=Yes LCCH=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CHATEAU | 1 | 51439150543 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CHATEAU | 1 | 51439150544 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Pearl/Precision"/creambeige |
S677A=Yes S752A=Yes LEGE=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CREAMBEIGE | 1 | 51439150551 | $522.06 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CREAMBEIGE | 1 | 51439150552 | $522.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/creambeige |
S677A=Yes S752A=Yes LCGE=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | CREAMBEIGE | 1 | 51439150545 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | CREAMBEIGE | 1 | 51439150546 | $478.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/schwarz |
S677A=Yes S752A=Yes LCSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439150541 | $478.87 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439150542 | $478.87 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Pearl/Precision"/sattel-brown |
S677A=Yes S752A=Yes LED5=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SATTELBRAUN | 1 | 51439150557 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | SATTELBRAUN | 1 | 51439150558 | $362.44 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" |
LC=Yes |
|||||||||
| 02 | Soft pad armrest rear left | SCHWARZ | 1 | 51419138417 | $100.00 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Soft pad armrest rear right | SCHWARZ | 1 | 51419138418 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "Finolino/Dakota" |
FC=Yes |
|||||||||
| 02 | Soft pad armrest rear left | SCHWARZ | 1 | 51436974175 | $37.39 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Soft pad armrest rear right | SCHWARZ | 1 | 51436974176 | $32.09 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision" |
LE=Yes |
|||||||||
| 02 | Soft pad armrest rear left | SCHWARZ | 1 | 51419138415 | $100.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Soft pad armrest rear right | SCHWARZ | 1 | 51419138416 | $100.00 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Clamp | 1,8MM | 6 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | L=30 | 4 | 07149149259 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 4 | 07147125319 | $1.00 | Shop at ECS Tuning | |||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 06 | Left rear loudspeaker cover | TITAN II | 1 | 51438045691 | $46.60 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Rear right loudspeaker cover | TITAN II | 1 | 51438045692 | $46.60 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 06 | Left rear loudspeaker cover | SCHWARZ | 1 | 51436978049 | $14.90 | Shop at ECS Tuning | ||||
| 06 | Rear right loudspeaker cover | SCHWARZ | 1 | 51436978050 | $14.90 | Shop at ECS Tuning | ||||
| 07 | Spring nut | X | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 08 | Clip with seal ring | GRAU | X | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
