Trim panel leg room for BMW 6 Series E64 LCI 630i (2010)

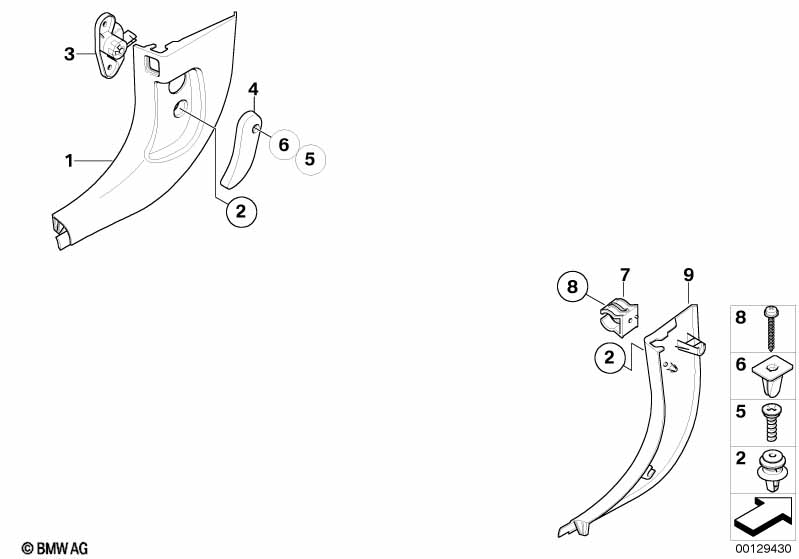

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Clip | SCHWARZ | 4 | 07147119500 | $1.89 | Shop at ECS Tuning | ||||
| 03 | Engine hood mechanism | 1 | 51439143461 | Shop at ECS Tuning | ||||||
| 04 | Lever f engine hood mechanism | 1 | 51437008934 | Shop at ECS Tuning | ||||||
| 05 | Phillips screw f plastic material | TS 5X13 | 3 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | 7X7 MM | 2 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Lateral trim panel front left | ANTHRAZIT | 1 | 51437073673 | Shop at ECS Tuning | |||||
| 09 | Lateral trim panel front right | ANTHRAZIT | 1 | 51437073674 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lateral trim panel front left | CHATEAU 63 | 1 | 51437073675 | Shop at ECS Tuning | |||||
| 09 | Lateral trim panel front right | CHATEAU 63 | 1 | 51437073676 | Shop at ECS Tuning | |||||
| 09 | Lateral trim panel front left | CREAMBEIGE DKL. | 1 | 51437073677 | Shop at ECS Tuning | |||||
| 09 | Lateral trim panel front right | CREAMBEIGE DKL. | 1 | 51437073678 | Shop at ECS Tuning | |||||
| 09 | Lateral trim panel front left | SATTELBRAUN | 1 | 51439115645 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lateral trim panel front right | SATTELBRAUN | 1 | 51439115646 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
