Heat insulation for BMW 6 Series E64 LCI 650i (2010)

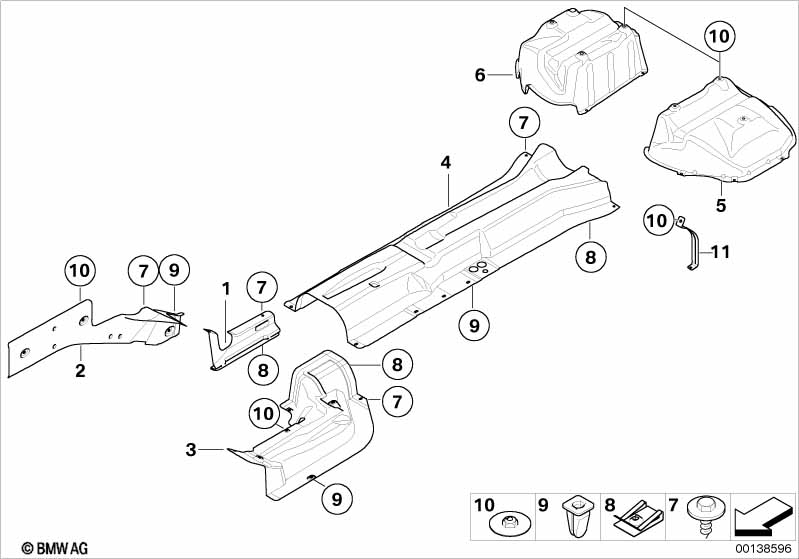

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation, left | 1 | 51487033725 | $13.60 | Shop at ECS Tuning | |||||
| 01 | Heat insulation right | 1 | 51487033726 | $13.60 | Shop at ECS Tuning | |||||
| 02 | Left engine support heat insulation | 1 | 51487033719 | $34.42 | Shop at ECS Tuning | |||||
| 02 | Heat shield, engine mount, right | 1 | 51487033720 | $34.42 | Shop at ECS Tuning | |||||
| 03 | Heat insulation front left | 1 | 51487033721 | $61.58 | Shop at ECS Tuning | |||||
| 03 | Right front heat insulation | 1 | 51487033722 | $61.58 | Shop at ECS Tuning | |||||
| 04 | Heat insulation, tunnel/tank | 1 | 51487009739 | $102.13 | +core | Shop at ECS Tuning | ||||
| 05 | Heat insulation, rear silencer, left | 1 | 51487052465 | $53.31 | Shop at ECS Tuning | |||||
| 06 | Heat insulation, rear silencer, right | 1 | 51487052466 | $53.31 | Shop at ECS Tuning | |||||
| 07 | Hex head screw with washer | X | 07147135934 | $0.38 | Shop at ECS Tuning | |||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | L=15MM, DMAX=12 | X | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Body nut | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Holder, heat protection sheet, left | 1 | 51717039129 | $6.65 | Shop at ECS Tuning | |||||
| 11 | Holder, heat protection sheet, right | 1 | 51717039130 | $6.65 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 LCI 650i Heat insulation?
- This technical diagram illustrates the Heat insulation within the Vehicle trim group for the 6 Series E64 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Heat insulation, left (Part #51487033725).
- Which models use the hardware listed in this Heat insulation?
- The hardware and components featured in the Heat insulation are specific to the 6 Series E64 LCI 650i produced during 2010. These technical specifications ensure that parts like the Heat insulation, left (51487033725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat insulation assembly?
- Each item in the Heat insulation corresponds to the numbered list below the illustration. For the 6 Series E64 LCI 650i, you can identify the Heat insulation, left by locating its position on the schematic, which then links to the official BMW part number 51487033725 for the Vehicle trim section.
