Shield,engine compartm./underfloor panel for BMW 6 Series E64 LCI 650i (2010)

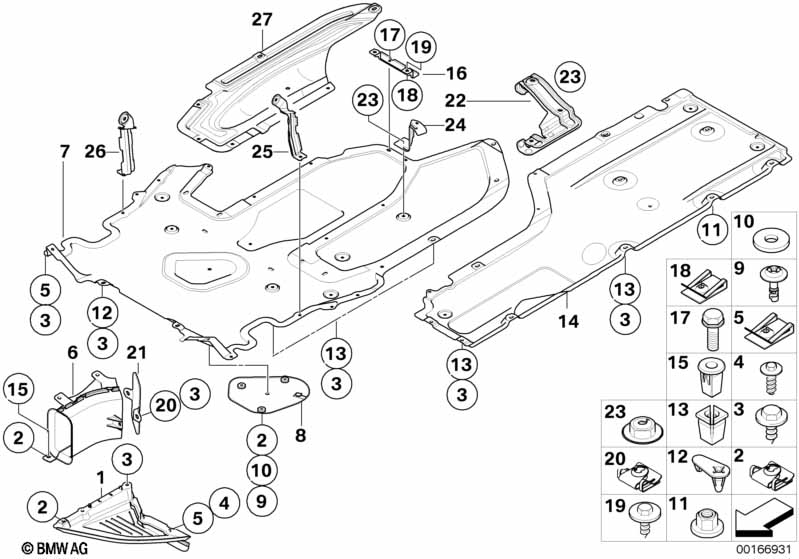

This Shield,engine compartm./underfloor panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, bottom left | 1 | 51717203951 | $16.31 | Shop at ECS Tuning | |||||
| 01 | Cover, bottom right | 1 | 51717203952 | $16.31 | Shop at ECS Tuning | |||||
| 02 | C-clip nut | 5 | 07146981767 | $1.33 | Shop at ECS Tuning | |||||
| 04 | Hex head screw | ST 4,8X18 SW8 | 2 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST 4,8-4.5-ZNS | 8 | 07146977473 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-16-ZNS3 | 8 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Lateral left engine compartm.screening | 1 | 51757203963 | $37.70 | Shop at ECS Tuning | |||||
| 06 | Lateral right engine compartm.screening | 1 | 51757203964 | $37.70 | Shop at ECS Tuning | |||||
| 07 | Underfloor coating center | 1 | 51757019868 | Shop at ECS Tuning | ||||||
| 07 | Underfloor coating center | 1 | 51757154149 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission |
S2TBA=Yes |
|||||||||
| 07 | Underfloor coating center | 1 | 51757154148 | Shop at ECS Tuning | ||||||
| 07 | Underfloor coating center | 1 | 51757180521 | $183.86 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 07 | Underfloor coating center | 1 | 51757154144 | $183.86 | Shop at ECS Tuning | |||||
| 07 | Underfloor coating center | 1 | 51757203955 | $183.86 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission and Hot-climate version |
S2TBA=Yes S823A=Yes |
|||||||||
| 07 | Underfloor coating center | 1 | 51757154145 | $183.86 | Shop at ECS Tuning | |||||
| 07 | Underfloor coating center | 1 | 51757203956 | $183.86 | Shop at ECS Tuning | |||||
| 08 | Underfloor coating cover | 1 | 51757195903 | $8.22 | Shop at ECS Tuning | |||||
| 09 | Quick-release screw | 15,4MM | 1 | 51717110995 | $1.14 | Shop at ECS Tuning | ||||
| 10 | Circlip | D=12MM | 1 | 51718212163 | $0.26 | Shop at ECS Tuning | ||||
| 11 | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | ST 4.8 | 2 | 07147130337 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | ST4,8MM | 6 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Underbody paneling, left | 1 | 51757009725 | $91.94 | Shop at ECS Tuning | |||||
| 14 | Underside paneling, right | 1 | 51757009726 | $91.94 | Shop at ECS Tuning | |||||
| 15 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bracket underfloor panelling,center | 1 | 51717153449 | $10.03 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M10X25-10.9ZNS3 | 3 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 18 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 19 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 22 | Bracket underfloor panelling, left | 1 | 51717152821 | $10.69 | Shop at ECS Tuning | |||||
| 22 | Bracket underfloor panelling, right | 1 | 51717152822 | $8.76 | Shop at ECS Tuning | |||||
| 23 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 25 | Retainer, floor-panel trim, center left | 1 | 51487177325 | $16.97 | Shop at ECS Tuning | |||||
| 26 | Retainer, floor-panel trim, center right | 1 | 51487177326 | $16.97 | Shop at ECS Tuning | |||||
