Trim panel A- / B- / C-Column for BMW MINI Clubman R55 LCI Cooper S

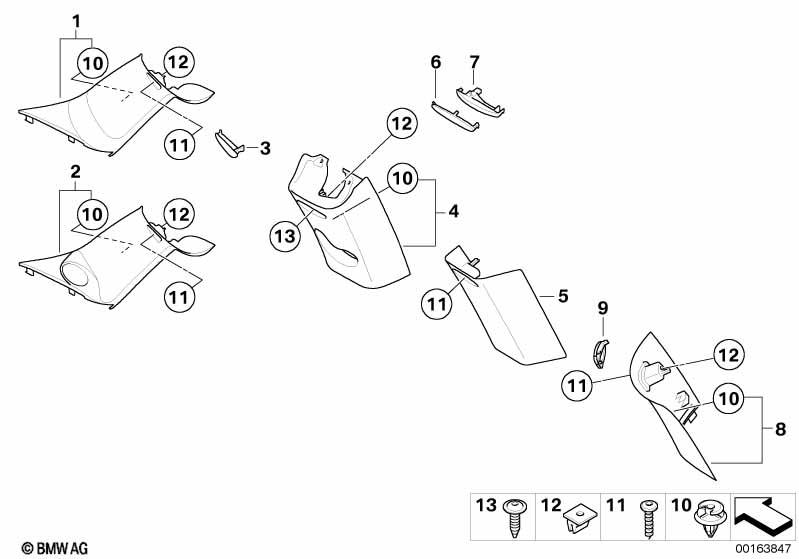

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 01 | Left column A cover | HELLGRAU | 1 | 08/2010 | 51432752997 | $23.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Right column A cover | HELLGRAU | 1 | 08/2010 | 51432752998 | $23.70 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 01 | Left column A cover | CARBON BLACK | 1 | 51432752999 | $23.43 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | CARBON BLACK | 1 | 51432753000 | $23.43 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=No S674A=No |
|||||||||
| 01 | Left column A cover | LIGHT BEIGE | 1 | 08/2010 | 51437267685 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | LIGHT BEIGE | 1 | 08/2010 | 51437267686 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and MINI HiFi speaker system |
S4AAA=No S6FDA=Yes |
|||||||||
| 02 | Left column A cover | HELLGRAU | 1 | 09/2009 | 51432756767 | $33.81 | Shop at ECS Tuning | |||
| Without speakers | ||||||||||
| 02 | Right column A cover | HELLGRAU | 1 | 09/2009 | 51432756768 | $33.81 | Shop at ECS Tuning | |||
| Without speakers | ||||||||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=Yes S674A=Yes |
|||||||||
| 02 | Right column A cover | CARBON BLACK | 1 | 09/2009 | 51437236260 | +core | Shop at ECS Tuning | |||
| Including tweeter | ||||||||||
| For vehicles with Headlining anthracite and MINI HiFi speaker system |
S4AAA=Yes S6FDA=Yes |
|||||||||
| 02 | Left column A cover | CARBON BLACK | 1 | 09/2009 | 51432756769 | $33.81 | Shop at ECS Tuning | |||
| Without speakers | ||||||||||
| 02 | Right column A cover | CARBON BLACK | 1 | 09/2009 | 51432756770 | $33.81 | Shop at ECS Tuning | |||
| Without speakers | ||||||||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=No S674A=Yes |
|||||||||
| 02 | Left column A cover | HELLGRAU | 1 | 09/2009 | 08/2010 | 51437236257 | +core | Shop at ECS Tuning | ||
| Including tweeter | ||||||||||
| 02 | Right column A cover | HELLGRAU | 1 | 09/2009 | 08/2010 | 51437236258 | Shop at ECS Tuning | |||
| Including tweeter | ||||||||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon Equipment specification Harman Kardon hi-fi system, but without tweeter, must be ordered separately |
S4AAA=No S674A=Yes |
|||||||||
| 02 | Left column A cover | LIGHT BEIGE | 1 | 08/2010 | 51437266469 | Shop at ECS Tuning | ||||
| 02 | Right column A cover | LIGHT BEIGE | 1 | 08/2010 | 51437266470 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 03 | Cover cap "Airbag" column A, left | HELLGRAU | 1 | 08/2010 | 51432753009 | $0.44 | Shop at ECS Tuning | |||
| 03 | Cover cap "Airbag" column A, left | LIGHT BEIGE | 1 | 08/2010 | 51437266765 | Shop at ECS Tuning | ||||
| 03 | Cover cap "Airbag" column A, right | HELLGRAU | 1 | 08/2010 | 51432753010 | $0.44 | Shop at ECS Tuning | |||
| 03 | Cover cap "Airbag" column A, right | LIGHT BEIGE | 1 | 08/2010 | 51437266766 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 03 | Cover cap "Airbag" column A, left | CARBON BLACK | 1 | 51432753011 | $0.44 | Shop at ECS Tuning | ||||
| 03 | Cover cap "Airbag" column A, right | CARBON BLACK | 1 | 51432753012 | $0.44 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 04 | Trim cover, B1 pillar, right | HELLGRAU | 1 | 08/2010 | 51432756152 | $25.22 | ENDED | Shop at ECS Tuning | ||
| 04 | Trim cover, B1 pillar, right | LIGHT BEIGE | 1 | 08/2010 | 51437266770 | Shop at ECS Tuning | ||||
| 04 | Cover, B-column upper left | HELLGRAU | 1 | 51432753001 | $38.40 | Shop at ECS Tuning | ||||
| 04 | Cover, B-column upper left | LIGHT BEIGE | 1 | 08/2010 | 51437266767 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 04 | Cover, B-column upper left | CARBON BLACK | 1 | 51432753003 | $38.40 | Shop at ECS Tuning | ||||
| 04 | Trim cover, B1 pillar, right | CARBON BLACK | 1 | 51432756150 | $25.22 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 05 | Trim cover, B2 pillar, right | HELLGRAU | 1 | 08/2010 | 51432756076 | $25.01 | Shop at ECS Tuning | |||
| 05 | Trim cover, B2 pillar, right | LIGHT BEIGE | 1 | 08/2010 | 51437266622 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 05 | Trim cover, B2 pillar, right | CARBON BLACK | 1 | 51432756074 | $25.01 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite or Light package |
S4AAA=No S563A=No |
|||||||||
| 06 | "Airbag" cover cap, B-pillar, left | HELLGRAU | 1 | 08/2010 | 51432753013 | Shop at ECS Tuning | ||||
| 06 | "Airbag" cover cap, B-pillar, left | LIGHT BEIGE | 1 | 08/2010 | 51437266623 | Shop at ECS Tuning | ||||
| 06 | "Airbag" cover cap, B-pillar, right | HELLGRAU | 1 | 08/2010 | 51432753014 | $0.44 | Shop at ECS Tuning | |||
| 06 | "Airbag" cover cap, B-pillar, right | LIGHT BEIGE | 1 | 08/2010 | 51437266624 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Light package |
S4AAA=Yes S563A=No |
|||||||||
| 06 | "Airbag" cover cap, B-pillar, left | CARBON BLACK | 1 | 51432753015 | $0.44 | Shop at ECS Tuning | ||||
| 06 | "Airbag" cover cap, B-pillar, right | CARBON BLACK | 1 | 51432753016 | $0.44 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Light package |
S4AAA=No S563A=Yes |
|||||||||
| 07 | "Airbag" cover cap, B-pillar, left | HELLGRAU | 1 | 08/2010 | 51432754513 | $9.60 | Shop at ECS Tuning | |||
| 07 | "Airbag" cover cap, B-pillar, left | LIGHT BEIGE | 1 | 08/2010 | 51437266625 | Shop at ECS Tuning | ||||
| 07 | "Airbag" cover cap, B-pillar, right | HELLGRAU | 1 | 08/2010 | 51432754514 | $9.60 | Shop at ECS Tuning | |||
| 07 | "Airbag" cover cap, B-pillar, right | LIGHT BEIGE | 1 | 08/2010 | 51437266626 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Light package |
S4AAA=Yes S563A=Yes |
|||||||||
| 07 | "Airbag" cover cap, B-pillar, left | CARBON BLACK | 1 | 51432754515 | $9.60 | Shop at ECS Tuning | ||||
| 07 | "Airbag" cover cap, B-pillar, right | CARBON BLACK | 1 | 51432754516 | $9.60 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 08 | Cover column C left | HELLGRAU | 1 | 08/2010 | 51432756079 | $29.60 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover column C left | LIGHT BEIGE | 1 | 08/2010 | 51437266627 | Shop at ECS Tuning | ||||
| 08 | Cover column C right | HELLGRAU | 1 | 08/2010 | 51432756080 | $29.60 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover column C right | LIGHT BEIGE | 1 | 08/2010 | 51437266628 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 08 | Cover column C left | CARBON BLACK | 1 | 51432756077 | $26.01 | Shop at ECS Tuning | ||||
| 08 | Cover column C right | CARBON BLACK | 1 | 51432756078 | $29.60 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 09 | Cover cap airbag C-pillar left | HELLGRAU | 1 | 08/2010 | 51432756069 | $0.77 | Shop at ECS Tuning | |||
| 09 | Cover cap airbag C-pillar left | LIGHT BEIGE | 1 | 08/2010 | 51437266631 | Shop at ECS Tuning | ||||
| 09 | Cover cap "Airbag" column C, right | HELLGRAU | 1 | 08/2010 | 51432756070 | $0.77 | Shop at ECS Tuning | |||
| 09 | Cover cap "Airbag" column C, right | LIGHT BEIGE | 1 | 08/2010 | 51437266632 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 09 | Cover cap airbag C-pillar left | CARBON BLACK | 1 | 51432756067 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Cover cap "Airbag" column C, right | CARBON BLACK | 1 | 51432756068 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Clip Natur | 6 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt for plastic material | ISA L=22MM | 5 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | D=8,5MM | 6 | 07130656754 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapp.screw w collar | 2 | 07146957954 | $0.36 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
