Convertible top folding mechanism for BMW 1 Series E88 118d (2013)

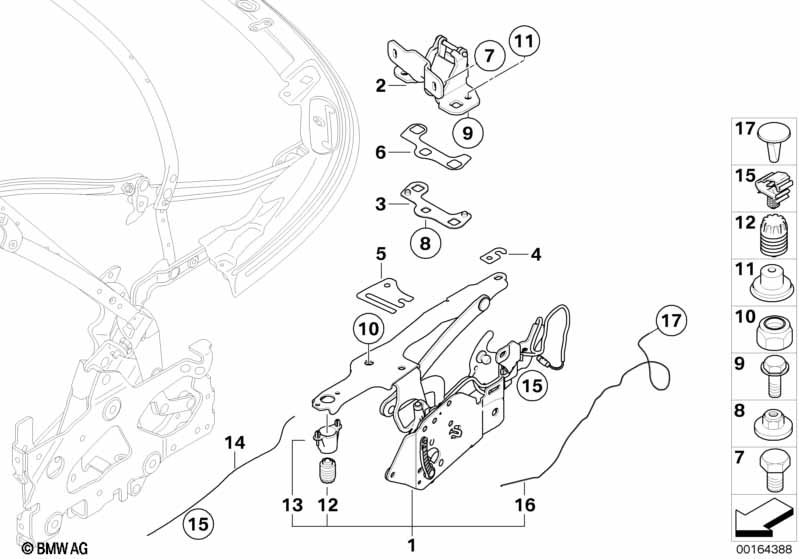

This Convertible top folding mechanism technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Convertible top folding mechanism, left | 1 | 51127174773 | $261.51 | Shop at ECS Tuning | |||||
| 01 | Convertible top folding mechanism, right | 1 | 51127174774 | $261.51 | Shop at ECS Tuning | |||||
| 02 | Left folding top flap hinge | 1 | 41007208713 | $38.67 | Shop at ECS Tuning | |||||
| 02 | Right folding top flap hinge | 1 | 41007208714 | $38.67 | Shop at ECS Tuning | |||||
| 03 | Memory, left | 1 | 41007208715 | $14.95 | Shop at ECS Tuning | |||||
| 03 | Memory, right | 1 | 41007208716 | $14.95 | Shop at ECS Tuning | |||||
| 04 | Spacer plate | 1,0MM | X | 54347182258 | $0.59 | Shop at ECS Tuning | ||||
| 04 | Spacer plate | 0,5MM | X | 54347182259 | $0.59 | Shop at ECS Tuning | ||||
| 05 | Spacer plate | 1,0MM | X | 41007166418 | $2.52 | Shop at ECS Tuning | ||||
| 05 | Spacer plate | 0,5MM | X | 54347176838 | $1.91 | Shop at ECS Tuning | ||||
| 06 | Gasket left | 1 | 41007199111 | $7.27 | Shop at ECS Tuning | |||||
| 06 | Gasket right | 1 | 41007199112 | $7.40 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X20-U2-8.8 | 4 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X20 | 4 | 07147236255 | Shop at ECS Tuning | |||||
| 10 | Hex nut | 8X8MM | 6 | 07129905185 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Covering cap | 4 | 54347186699 | $0.39 | Shop at ECS Tuning | |||||
| 12 | Stop buffer | 2 | 51232756173 | $1.83 | Shop at ECS Tuning | |||||
| 13 | Mount for jounce stop | 2 | 54347219118 | $23.79 | Shop at ECS Tuning | |||||
| 14 | Activation control, linkage exit flap | 2 | 54347219116 | $82.05 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | 8 | 34322333206 | $0.58 | Shop at ECS Tuning | |||||
| 15 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 16 | Bowd.cable f fold.top emergency mechan. | 2 | 54347190749 | $40.02 | Shop at ECS Tuning | |||||
| 17 | Emergency release button | 2 | 54347129588 | $2.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 118d Convertible top folding mechanism?
- This technical diagram illustrates the Convertible top folding mechanism within the Bodywork group for the 1 Series E88 118d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Convertible top folding mechanism, left (Part #51127174773).
- Which models use the hardware listed in this Convertible top folding mechanism?
- The hardware and components featured in the Convertible top folding mechanism are specific to the 1 Series E88 118d produced during 2013. These technical specifications ensure that parts like the Convertible top folding mechanism, left (51127174773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Convertible top folding mechanism assembly?
- Each item in the Convertible top folding mechanism corresponds to the numbered list below the illustration. For the 1 Series E88 118d, you can identify the Convertible top folding mechanism, left by locating its position on the schematic, which then links to the official BMW part number 51127174773 for the Bodywork section.
