Trim panel, trunk floor for BMW 1 Series E88 125i (2013)

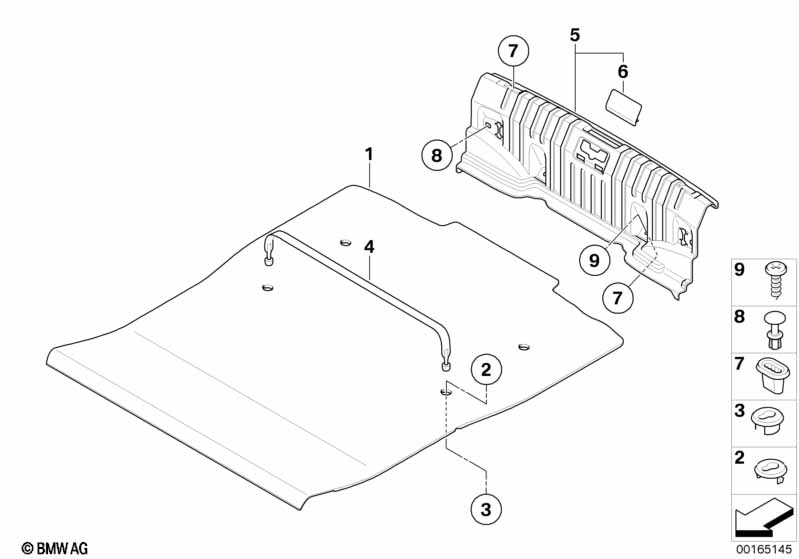

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | 1 | 51479138557 | $87.71 | +core | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 02 | Mount, retaining strap upper section | ANTHRAZIT | 4 | 51478146943 | $0.77 | Shop at ECS Tuning | ||||
| 03 | Mount, retaining strap lower section | ANTHRAZIT | 4 | 51478146941 | $0.75 | Shop at ECS Tuning | ||||
| 04 | Band clamp, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 05 | Loading sill cover | 1 | 51476960416 | $23.51 | +core | Shop at ECS Tuning | ||||
| 06 | Cover, catch bracket | 1 | 51479127966 | $3.17 | Shop at ECS Tuning | |||||
| 07 | Grommet | 12X6,3 | 2 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | SCHWARZ | 2 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 09 | Screw | NS-TS5X16-ZNFE | 2 | 07129903266 | $0.20 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
