Trunk trim panel for BMW 6 Series E64 M6 (2010)

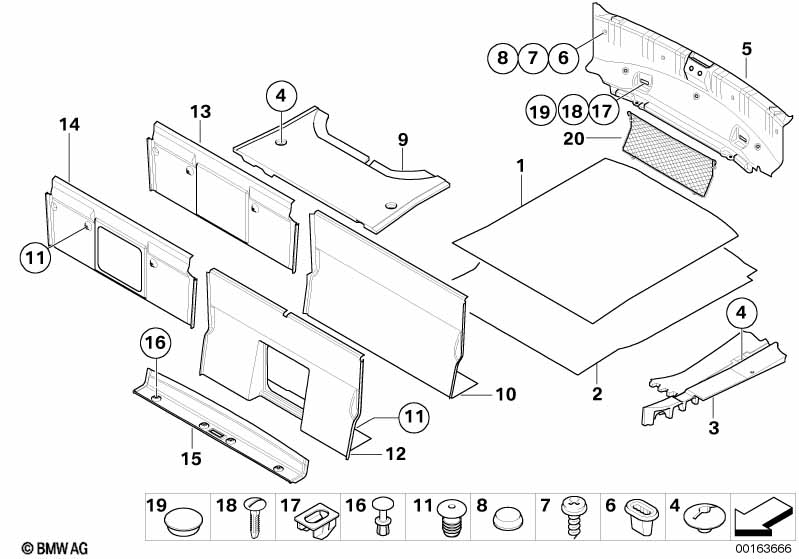

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat | ANTHR.-MELANGE | 1 | 09/2007 | 51476968352 | $41.27 | +core | Shop at ECS Tuning | ||
| 02 | Floor carpet, luggage compartment | 1 | 09/2007 | 51477009193 | $42.97 | Shop at ECS Tuning | ||||
| 03 | Pad floor carpet, left rear | 1 | 09/2007 | 51477054959 | $18.17 | Shop at ECS Tuning | ||||
| 03 | Pad floor carpet, right rear | 1 | 09/2007 | 51477054960 | $14.81 | Shop at ECS Tuning | ||||
| 04 | Push-button | 4 | 09/2007 | 61661368599 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Loading sill cover | 1 | 09/2007 | 51476988986 | $45.46 | +core | Shop at ECS Tuning | |||
| 06 | Grommet | 12X6,3 | 4 | 09/2007 | 51131840154 | $0.47 | Shop at ECS Tuning | |||
| 07 | Sheet metal screw | ST3,5X13 SW | 4 | 09/2007 | 07119904309 | $0.73 | Shop at ECS Tuning | |||
| 07 | Sheet metal screw | ST3,5X13 SW | 4 | 09/2007 | 07149177361 | $0.20 | Shop at ECS Tuning | |||
| 08 | Cap | SCHWARZ | 4 | 09/2007 | 51161949793 | $0.42 | Shop at ECS Tuning | |||
| 09 | Pad floor carpet, luggage compartment | 1 | 09/2007 | 51477131296 | $27.11 | Shop at ECS Tuning | ||||
| 11 | Blind plug | SCHWARZ | 2 | 09/2007 | 33321128339 | $0.60 | Shop at ECS Tuning | |||
| 13 | Trunk partition trim panel | ANTHR.-MELANGE | 1 | 09/2007 | 51477009182 | $46.90 | +core | Shop at ECS Tuning | ||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 14 | Trunk partition trim panel | ANTHR.-MELANGE | 1 | 09/2007 | 51477009183 | $51.56 | +core | Shop at ECS Tuning | ||
| 15 | Cover of rear window frame bottom part | ANTHR.-MELANGE | 1 | 09/2007 | 51477129254 | $38.83 | ENDED, +core | Shop at ECS Tuning | ||
| 16 | Expanding rivet | SCHWARZ | 4 | 09/2007 | 51498166702 | $0.37 | Shop at ECS Tuning | |||
| 17 | Lock insert | 2 | 09/2007 | 51711916199 | $0.32 | Shop at ECS Tuning | ||||
| 18 | Lock | 2 | 09/2007 | 51161932255 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Blind plug | D=15MM | 2 | 09/2007 | 51718170298 | $0.23 | Shop at ECS Tuning | |||
| 20 | Net with wire clamp | 2 | 09/2007 | 51476960902 | $38.55 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
