Headlining for BMW 5 Series G30 520d (2020)

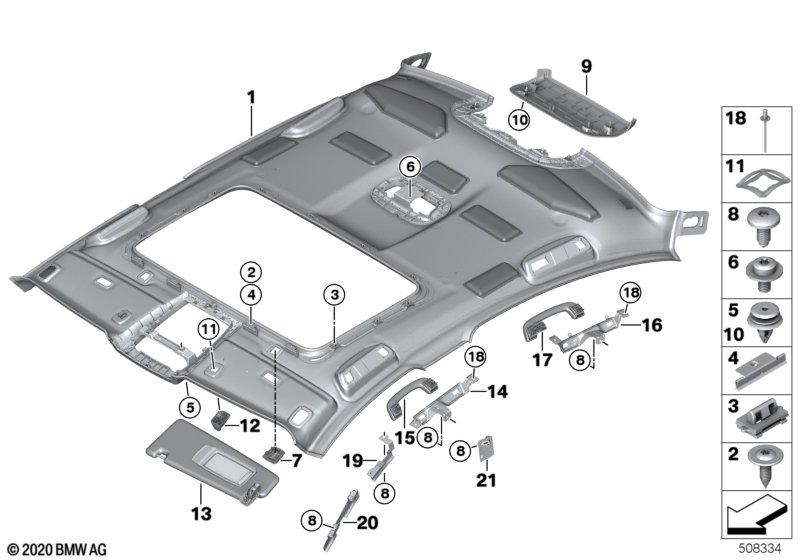

This Headlining technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Headlining | ANTHRAZIT | 1 | 51448065009 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headliner in Alcantara anthracite |
S403A=No S776A=Yes |
|||||||||
| 01 | Roofliner Alcantara | SCHWARZ | 1 | 51448068516 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headliner in Alcantara anthracite |
S403A=Yes S776A=Yes |
|||||||||
| 01 | Roofliner slide/tilt sunroof Alcantara | SCHWARZ | 1 | 51448068518 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | ANTHRAZIT | 1 | 51448065010 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S403A=Yes S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | CANBERRABEIGE | 1 | 51447445687 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S403A=No S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 01 | Headlining | CANBERRABEIGE | 1 | 51447431202 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S403A=Yes S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | ELFENBEINWEISS | 1 | 51447419736 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S403A=No S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 01 | Headlining | ELFENBEINWEISS | 1 | 51447419735 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 02 | Fillister head self-tapp.screw w collar | ST 3,5X12 | 5 | 07147139407 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Clip, panoramic glass sunroof | 10 | 07147212593 | $0.36 | Shop at ECS Tuning | |||||
| 04 | Bracket for sliding lifting roof frame | 4 | 07147147141 | Shop at ECS Tuning | ||||||
| 05 | Clip with sealing washer, Light Blue | 2 | 07149136882 | $0.59 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 06 | Countersunk screw | M5X10 | 1 | 07119908707 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 07 | Cover, microphone | SCHWARZ | 2 | 51447495572 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 07 | Cover, microphone | CANBERRABEIGE | 2 | 51447496974 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 07 | Cover, microphone | ELFENBEINWEISS | 2 | 51447486234 | NoS | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M6X12 | 4 | 51439496586 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 09 | Cover, stop lamp | ANTHRAZIT | 1 | 51448065048 | Shop at ECS Tuning | |||||
| For vehicles with Headliner in Alcantara anthracite |
S776A=Yes |
|||||||||
| 09 | Cover, brake light, Alcantara | ANTHRAZIT | 1 | 51448068468 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 09 | Cover, stop lamp | CANBERRABEIGE | 1 | 51447431204 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 09 | Cover, stop lamp | ELFENBEINWEISS | 1 | 51447419684 | Shop at ECS Tuning | |||||
| 10 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Securing clip | 2 | 51167426646 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 12 | Counterbearing for sun visor | ANTHRAZIT | 2 | 51168073382 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 12 | Counterbearing for sun visor | CANBERRABEIGE | 2 | 51167465197 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 12 | Counterbearing for sun visor | ELFENBEINWEISS | 2 | 51167465198 | Shop at ECS Tuning | |||||
| For vehicles with Headliner in Alcantara anthracite |
S776A=Yes |
|||||||||
| 13 | Sun visor, Alcantara, right | ANTHRAZIT | 1 | 51168068840 | Shop at ECS Tuning | |||||
| 13 | Sun visor, Alcantara, left | ANTHRAZIT | 1 | 51168068841 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 13 | Left sun visor | ANTHRAZIT | 1 | 51168068867 | Shop at ECS Tuning | |||||
| For vehicles with Headliner in Alcantara anthracite and Country-specific equipment Taiwan 04825 |
S776A=Yes S8LTA=Yes |
|||||||||
| 13 | Sun visor, Alcantara, right | ANTHRAZIT | 1 | 51165A08CC0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version China and Headlining anthracite and Headliner in Alcantara anthracite |
L8AAA=No S775A=Yes S776A=No |
|||||||||
| 13 | Right sun visor | ANTHRAZIT | 1 | 51168068770 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 13 | Right sun visor | CANBERRABEIGE | 1 | 51167431214 | Shop at ECS Tuning | |||||
| 13 | Left sun visor | CANBERRABEIGE | 1 | 51167431215 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 13 | Right sun visor | ELFENBEINWEISS | 1 | 51167419450 | Shop at ECS Tuning | |||||
| 13 | Left sun visor | ELFENBEINWEISS | 1 | 51167419451 | Shop at ECS Tuning | |||||
| 14 | Bracket, front left grab handle | 1 | 51167384555 | Shop at ECS Tuning | ||||||
| 14 | Bracket, front right grab handle | 1 | 51167384556 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite or Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 15 | Grab handle, front | SCHWARZ | 2 | 51167464443 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 15 | Grab handle, front | CANBERRABEIGE | 2 | 51167475741 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. or Cloth junction / anthracite or Cloth/leather plectoid / anthracite |
S775A=No S776A=No EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes BYAT=Yes CNAT=Yes |
|||||||||
| 15 | Grab handle, front | ELFENBEINWEISS | 2 | 51167475742 | NoS | Shop at ECS Tuning | ||||
| 16 | Grab handle bracket, rear left | 1 | 51167384557 | Shop at ECS Tuning | ||||||
| 16 | Grab handle bracket, rear right | 1 | 51167384558 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite or Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 17 | Handle rear left | ANTHRAZIT | 1 | 51167464441 | Shop at ECS Tuning | |||||
| 17 | Handle rear right | ANTHRAZIT | 1 | 51167464442 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or Leather Dakota Canberra beige |
S775A=No S776A=No CY=Yes DO=Yes LCEA=Yes |
|||||||||
| 17 | Handle rear left | CANBERRABEIGE | 1 | 51167475735 | NoS | Shop at ECS Tuning | ||||
| 17 | Handle rear right | CANBERRABEIGE | 1 | 51167475736 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and anthracite or elfenbein-weiss or Tobacco or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No S776A=No AT=Yes EW=Yes F1=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 17 | Handle rear left | ELFENBEINWEISS | 1 | 51167475737 | NoS | Shop at ECS Tuning | ||||
| 17 | Handle rear right | ELFENBEINWEISS | 1 | 51167475738 | NoS | Shop at ECS Tuning | ||||
| 18 | Blind rivet | 6 MM | 12 | 07149289999 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
