Door window lifting mechanism rear for BMW 1 Series E88 135i (2010)

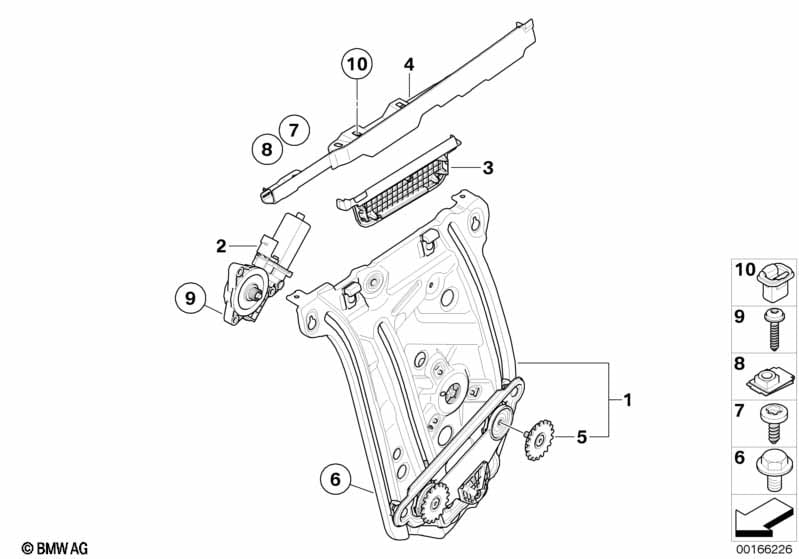

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor, rear left | 1 | 51377165599 | $150.66 | Shop at ECS Tuning | |||||
| 01 | Window lifter without motor, rear right | 1 | 51377165600 | $150.66 | Shop at ECS Tuning | |||||
| 02 | Drive, window lifter, rear left | 1 | 67627291451 | Shop at ECS Tuning | ||||||
| 02 | Drive, window lifter, rear right | 1 | 67627291452 | Shop at ECS Tuning | ||||||
| 03 | Acoustic insulation panel, left | 1 | 51377201949 | $10.08 | Shop at ECS Tuning | |||||
| 03 | Acoustic insulation panel, right | 1 | 51377201950 | $10.08 | Shop at ECS Tuning | |||||
| 04 | Connection angle, left | 1 | 51377165603 | $33.52 | Shop at ECS Tuning | |||||
| 04 | Connection angle, right | 1 | 51377165604 | $33.52 | Shop at ECS Tuning | |||||
| 05 | T-head bolt | 4 | 51377188462 | $4.48 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | 2 | 51247203736 | $1.27 | Shop at ECS Tuning | |||||
| 07 | Torx screw with washer | ISA M6X17 | 10 | 07149156655 | $0.47 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | M6 | 10 | 07142452506 | Shop at ECS Tuning | |||||
| 10 | Plug-in retainer | 4 | 07149128777 | $0.89 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 1 Series E88 135i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter without motor, rear left (Part #51377165599).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 1 Series E88 135i produced during 2010. These technical specifications ensure that parts like the Window lifter without motor, rear left (51377165599) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Window lifter without motor, rear left by locating its position on the schematic, which then links to the official BMW part number 51377165599 for the Vehicle trim section.
