Mirror lens (S430A) for BMW 3 Series E90 LCI 320i (2011)

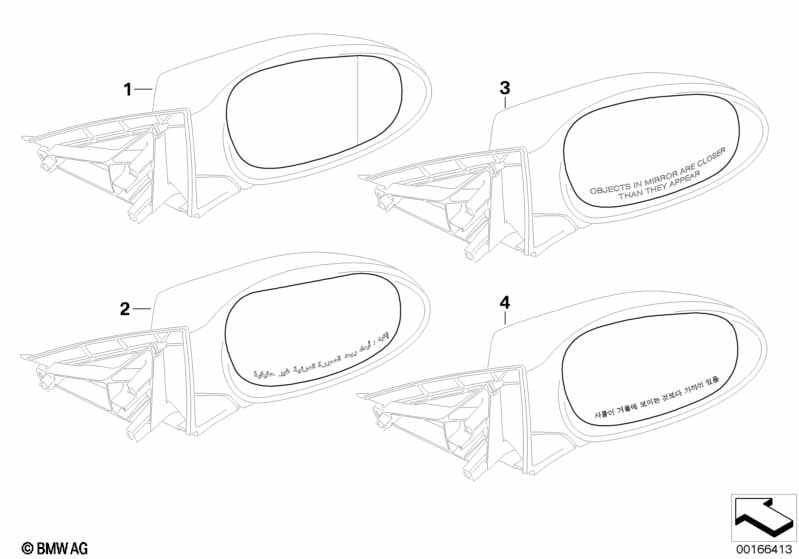

This Mirror lens (S430A) technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
||||||||
| 01 | Mirror glas, heated, wide-angle, left | 1 | 09/2008 | 51167158309 | Shop at ECS Tuning | |||||
| 01 | Mirror glas, heated, wide-angle, right | 1 | 09/2008 | 51167158310 | Shop at ECS Tuning | |||||
| For vehicles with Country version, India |
L8LAA=Yes |
|||||||||
| 03 | Mirror glas, heated, wide-angle, left | 1 | 09/2008 | 51167158311 | Shop at ECS Tuning | |||||
| 03 | Mirror glas, heated, wide-angle, right | 1 | 09/2008 | 51167158312 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i Mirror lens (S430A)?
- This technical diagram illustrates the Mirror lens (S430A) within the Vehicle trim group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Mirror glas, heated, wide-angle, left (Part #51167158309).
- Which models use the hardware listed in this Mirror lens (S430A)?
- The hardware and components featured in the Mirror lens (S430A) are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Mirror glas, heated, wide-angle, left (51167158309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mirror lens (S430A) assembly?
- Each item in the Mirror lens (S430A) corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Mirror glas, heated, wide-angle, left by locating its position on the schematic, which then links to the official BMW part number 51167158309 for the Vehicle trim section.
