Front air duct for BMW 3 Series E90 320d (2008)

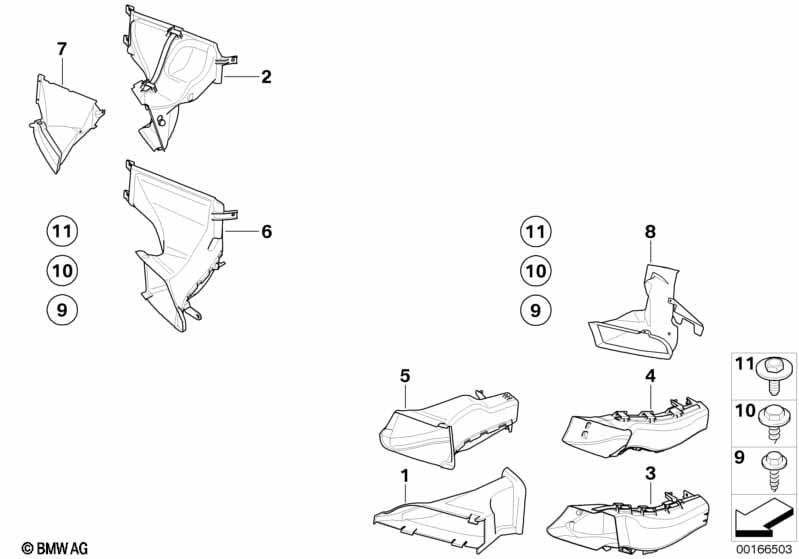

This Front air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

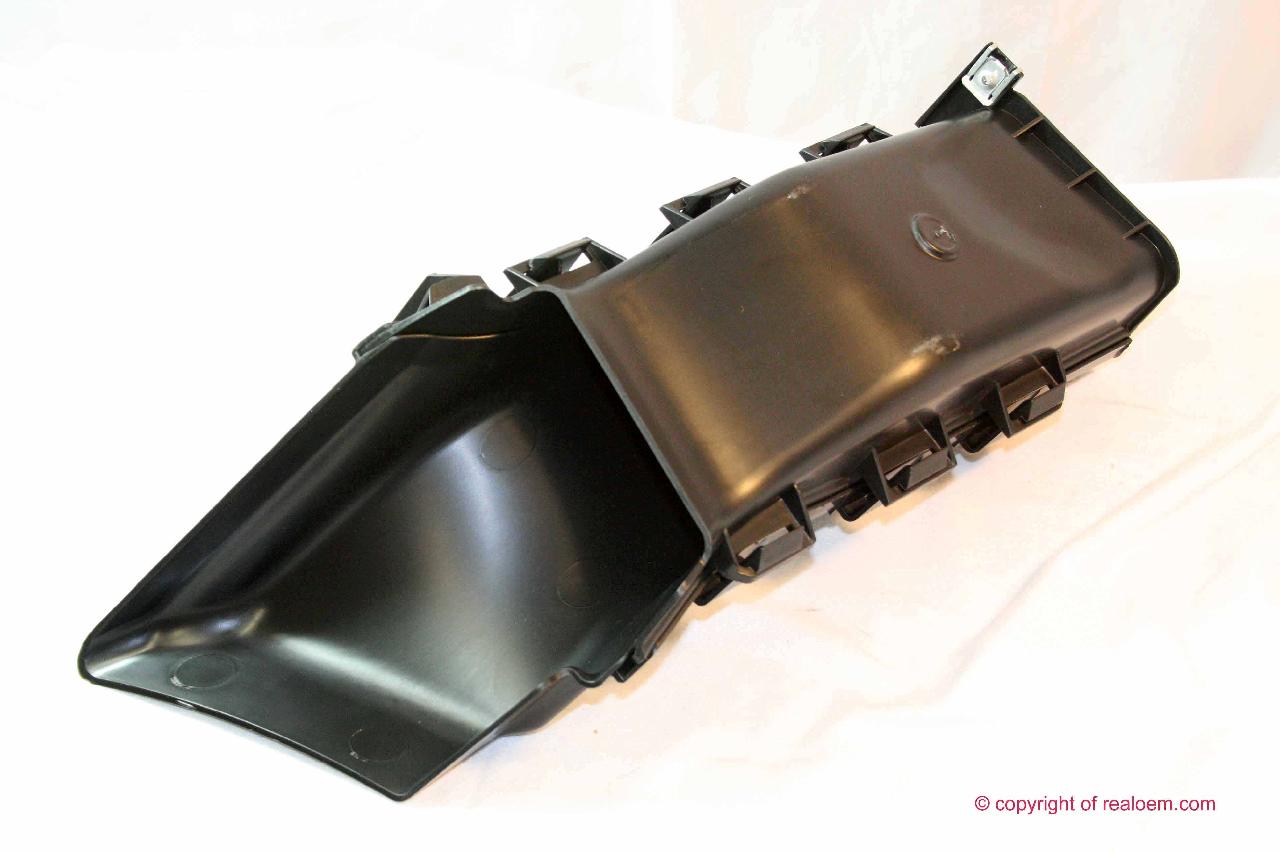

| 01 | Front left brake air duct | 1 | 51717121569 | $26.48 | Shop at ECS Tuning | |||||
| 01 | Front right brake air duct | 1 | 51747121570 | $26.48 | Shop at ECS Tuning | |||||
| 10 | Sheet metal screw | 4,8X22 | 4 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
| 10 | Hex head screw with washer | ST 4,8X25 ZNS3 | 4 | 07119905241 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning |
