Headlining / Handle for BMW 1 Series E82 123d (2013)

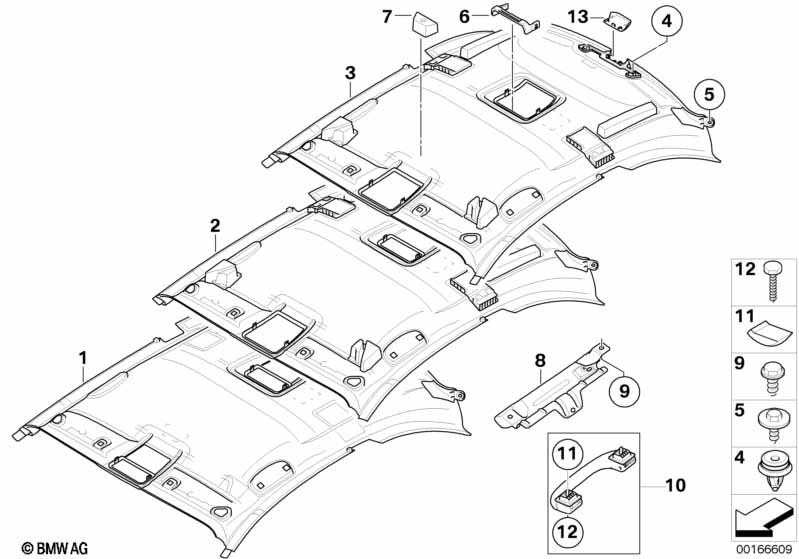

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Glass roof, electrical and Light package |
S403A=No S563A=No |
||||||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Headlining | ANTHRAZIT | 1 | 51448045113 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and beige |
S775A=No B4=Yes |
|||||||||
| 01 | Headlining | BEIGE | 1 | 03/2011 | 51442997411 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and beige or terra or lemon/beige |
S775A=No A5=Yes B8=Yes F6=Yes |
|||||||||
| 01 | Headlining | BEIGE | 1 | 51442997366 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or korall-red or Monaco blue or orange/black or Black |
S775A=No AL=Yes AT=Yes B7=Yes D1=Yes D9=Yes F5=Yes SW=Yes |
|||||||||
| 01 | Headlining | ALASKAGRAU | 1 | 51442997365 | +core | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f mobile phone w Bluetooth and Isofix-System and Voice control and Interior mirror with automatic-dip and Rain sensor and Automatic air conditioning and Alarm system and Headlining anthracite |
S633A=Yes S640A=Yes S644A=Yes S470A=Yes S620A=Yes S431A=Yes S521A=Yes S534A=Yes S302A=No S775A=Yes |
|||||||||
| 02 | Headlining | ANTHRAZIT | 1 | 51448045114 | $504.13 | +core | Shop at ECS Tuning | |||
| For vehicles with Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f mobile phone w Bluetooth and Isofix-System and Voice control and Interior mirror with automatic-dip and Rain sensor and Automatic air conditioning and Alarm system and Headlining anthracite and beige or terra or lemon/beige |
S633A=Yes S640A=Yes S644A=Yes S470A=Yes S620A=Yes S431A=Yes S521A=Yes S534A=Yes S302A=No S775A=No A5=Yes B8=Yes F6=Yes |
|||||||||
| 02 | Headlining | BEIGE | 1 | 51442997368 | $496.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f mobile phone w Bluetooth and Isofix-System and Voice control and Interior mirror with automatic-dip and Rain sensor and Automatic air conditioning and Alarm system and Headlining anthracite and alaska-grey or anthracite or lemon or korall-red or Monaco blue or orange/black or Black |
S633A=Yes S640A=Yes S644A=Yes S470A=Yes S620A=Yes S431A=Yes S521A=Yes S534A=Yes S302A=No S775A=No AL=Yes AT=Yes B7=Yes D1=Yes D9=Yes F5=Yes SW=Yes |
|||||||||
| 02 | Headlining | ALASKAGRAU | 1 | 51442997367 | $496.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Headlining anthracite |
S302A=Yes S775A=Yes |
|||||||||
| 03 | Headlining | ANTHRAZIT | 1 | 51448045116 | $504.13 | +core | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Headlining anthracite and beige or terra or lemon/beige |
S302A=Yes S775A=No A5=Yes B8=Yes F6=Yes |
|||||||||
| 03 | Headlining | BEIGE | 1 | 51442997372 | $504.13 | +core | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Headlining anthracite and alaska-grey or anthracite or lemon or korall-red or Monaco blue or orange/black or Black |
S302A=Yes S775A=No AL=Yes AT=Yes B7=Yes D1=Yes D9=Yes F5=Yes SW=Yes |
|||||||||
| 03 | Headlining | ALASKAGRAU | 1 | 51442997371 | $504.13 | +core | Shop at ECS Tuning | |||
| 04 | Clip with washer, natur | WEIß | 2 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 05 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 06 | Bracket headlining | 1 | 51442996111 | $9.36 | +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system |
S302A=No |
|||||||||
| 06 | Bracket headlining | 1 | 51442996838 | $9.36 | +core | Shop at ECS Tuning | ||||
| 07 | Support, head lining, front | 1 | 51446966530 | $3.76 | Shop at ECS Tuning | |||||
| 08 | Bracket, front left grab handle | 1 | 51167111001 | $4.51 | Shop at ECS Tuning | |||||
| 08 | Bracket, front right grab handle | 1 | 51167111002 | $4.51 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST5,5X16 SW | 6 | 07119901339 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 10 | Grab handle, front | SCHWARZ | 2 | 51169143523 | $14.25 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 10 | Grab handle, front | BEIGE | 2 | 51169143521 | $12.45 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 10 | Grab handle, front | ALASKAGRAU | 2 | 51169143520 | $9.94 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 11 | Covering cap for grip | SCHWARZ | 4 | 51167897902 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 11 | Covering cap for grip | BEIGE | 4 | 51166956434 | $0.46 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 11 | Covering cap for grip | ALASKAGRAU | 4 | 51166956433 | $0.46 | Shop at ECS Tuning | ||||
| 12 | Sheet-metal screw, silver | ST4,8X19 | 4 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 13 | Covering headlining rear | SCHWARZ | 1 | 51448046491 | $4.37 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and beige or terra or lemon/beige |
S775A=No A5=Yes B8=Yes F6=Yes |
|||||||||
| 13 | Covering headlining rear | BEIGE | 1 | 51442996337 | $4.37 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or korall-red or Monaco blue or orange/black or Black |
S775A=No AL=Yes AT=Yes B7=Yes D1=Yes D9=Yes F5=Yes SW=Yes |
|||||||||
| 13 | Covering headlining rear | ALASKAGRAU | 1 | 51442996335 | $4.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
