Air duct for BMW 1 Series E87 LCI 120d (2011)

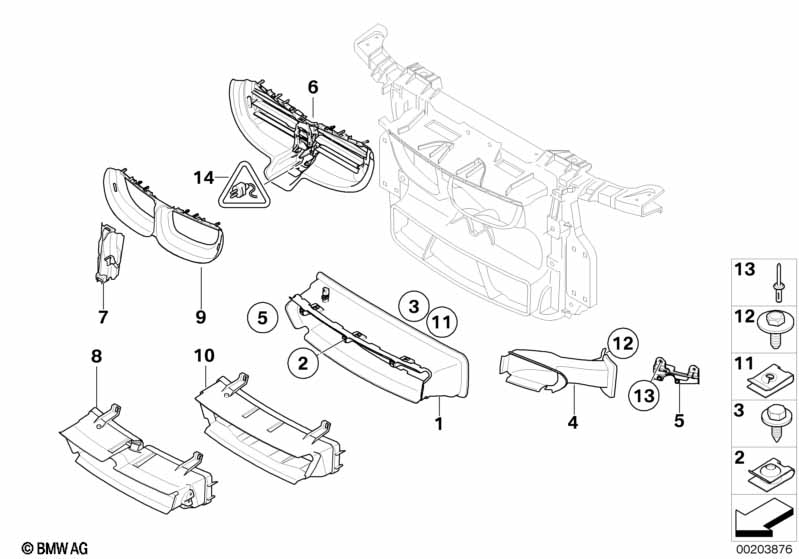

This Air duct technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Intermediate part air duct center bottom | 1 | 51647836650 | Shop at ECS Tuning | ||||||
| 02 | Body nut | ST4,8-9-ZNS3 | 1 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 04 | Front left brake air duct | 1 | 51747906805 | Shop at ECS Tuning | ||||||
| 04 | Front right brake air duct | 1 | 51747906806 | Shop at ECS Tuning | ||||||
| For vehicles with Headlight cleaning system and M Aerodynamics package |
S502A=Yes S715A=Yes |
|||||||||
| 05 | Bracket left | 1 | 51647836703 | $7.09 | Shop at ECS Tuning | |||||
| 05 | Bracket right | 1 | 51647836704 | $7.09 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Active steering and Towing hitch, detachable and M Aerodynamics package |
S1CBA=Yes S217A=No S235A=No S715A=No |
|||||||||
| 06 | Active cooling slat system, top | 1 | 51647174450 | Shop at ECS Tuning | ||||||
| 07 | Cover for cooling slat control, center | 1 | 51647199583 | Shop at ECS Tuning | ||||||
| 09 | Air duct, top | 1 | 09/2009 | 51747189263 | $14.75 | Shop at ECS Tuning | ||||
| 10 | Air duct, bottom | 1 | 09/2009 | 51747189264 | $18.48 | Shop at ECS Tuning | ||||
| 11 | C-clip nut | 4 | 07146955207 | $0.29 | Shop at ECS Tuning | |||||
| 12 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system and M Aerodynamics package |
S502A=Yes S715A=Yes |
|||||||||
| 13 | Blind compression rivet | 6X21MM | 4 | 09/2005 | 51118222901 | $0.82 | Shop at ECS Tuning | |||
| For vehicles with CO2 package and Chassis & suspens. setup"Adaptive Drive" and Active steering and Towing hitch, detachable |
S1CBA=Yes S2VAA=Yes S217A=Yes S235A=Yes |
|||||||||
| 14 | Universal socket housing uncoded | 4-POLIG | 1 | 12527549033 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Terminal socket MCON 1.2 ELA | 0,5-0,75MM² AG | 1 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
