Wheel arch trim, rear for BMW 1 Series E88 135i (2010)

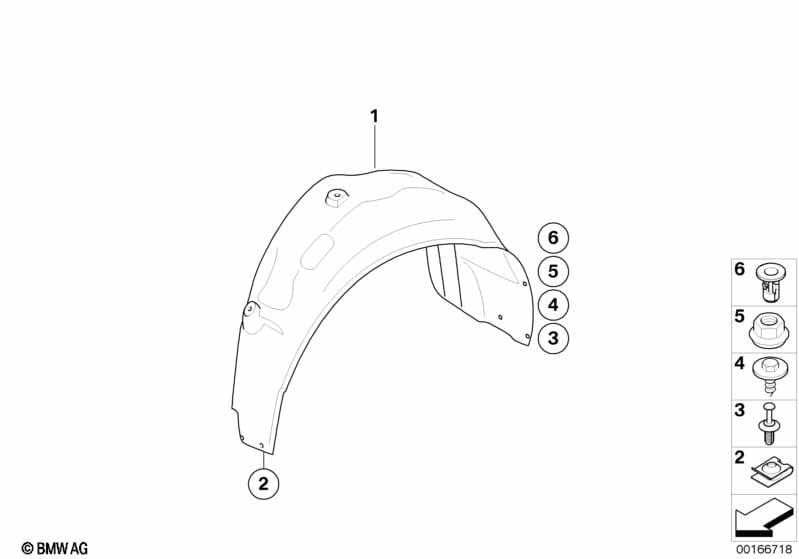

This Wheel arch trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, wheel housing, rear left | 1 | 51717166249 | $43.25 | Shop at ECS Tuning | |||||
| 01 | Cover, wheel housing, rear right | 1 | 51717166250 | $43.25 | Shop at ECS Tuning | |||||
| 02 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 6 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Hex head screw with washer | ST4,8X16MM | 10 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Plastic capnut with washer | D=22MM | 14 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | L=18.4, DMAX=18 | 2 | 07147201307 | $0.25 | Shop at ECS Tuning |
