Center console for BMW 1 Series E88 128i (2013)

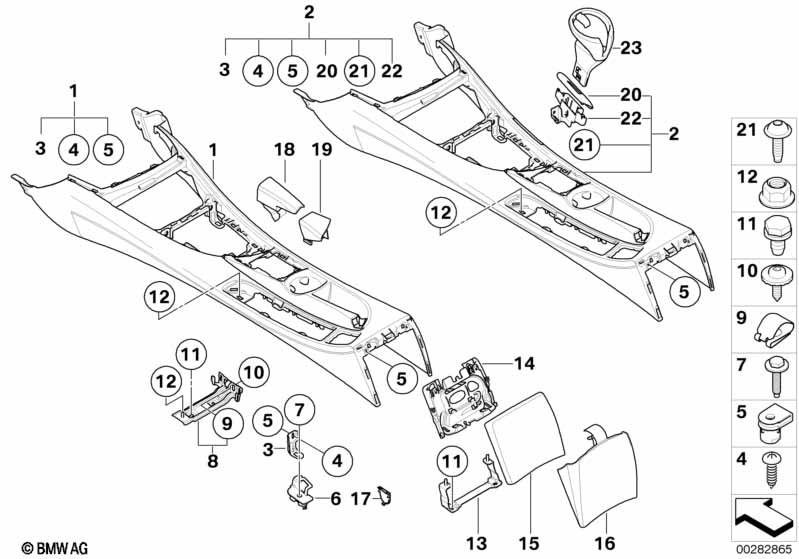

This Center console technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Navigation system Business or Navigation system Professional |
S606A=Yes S609A=Yes |
||||||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 01 | Centre console with cup holder | BEIGE | 1 | 51169169509 | $148.64 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 01 | Centre console with cup holder | SCHWARZ | 1 | 51169169507 | $151.41 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 02 | Centre console with cup holder | BEIGE | 1 | 51169169509 | $148.64 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NZ=Yes SW=Yes |
|||||||||
| 02 | Centre console with cup holder | SCHWARZ | 1 | 51169169507 | $151.41 | Shop at ECS Tuning | ||||
| 03 | Bracket, center console front left | 1 | 51167134131 | $2.21 | Shop at ECS Tuning | |||||
| 03 | Bracket, center console front right | 1 | 51167134132 | $2.21 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Plastic nut | 4 | 51417025609 | $2.71 | Shop at ECS Tuning | |||||
| 06 | Adapter,bracket center console front lft | 1 | 51167122337 | $4.30 | Shop at ECS Tuning | |||||
| 06 | Adapter,bracket center console frnt rght | 1 | 51167122338 | $4.25 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X30-LD-SC-U2 | 2 | 07119905136 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Bracket f center console, center | 1 | 51169147053 | $7.00 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | 1 | 07146957147 | $0.47 | Shop at ECS Tuning | |||||
| 10 | Combi. fillister head self-tapping screw | 1 | 07147129778 | $0.71 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 13 | Bracket, center console rear | 1 | 51166962072 | $5.30 | Shop at ECS Tuning | |||||
| 14 | Console insert, rear | 1 | 51167135455 | $6.07 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 17 | Screw cover | ALASKAGRAU | 1 | 51169110446 | $1.16 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 17 | Screw cover | BEIGE | 1 | 51169110447 | $1.16 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 17 | Screw cover | SCHWARZ | 1 | 51169110445 | $1.16 | Shop at ECS Tuning | ||||
| 18 | Lift sleeve for center armrest | 1 | 51167133883 | $2.89 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 19 | Screw cover | ALASKAGRAU | 1 | 51169121610 | $6.59 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 19 | Screw cover | BEIGE | 1 | 51167155150 | $6.59 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or Black |
AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes SW=Yes |
|||||||||
| 19 | Screw cover | SCHWARZ | 1 | 51167125547 | $6.59 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 20 | Cover, cup holder | ALASKAGRAU | 1 | 51169144633 | $23.17 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 20 | Cover, cup holder | BEIGE | 1 | 51169144634 | $23.17 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or tabak/Kontrast weiss or schwarz/Kontrast orange or Black |
AL=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes NV=Yes NZ=Yes SW=Yes |
|||||||||
| 20 | Cover, cup holder | SCHWARZ | 1 | 51169144632 | $23.17 | Shop at ECS Tuning | ||||
| 21 | Fillister head screw with collar | 3X10 | 2 | 61317682091 | $0.88 | Shop at ECS Tuning | ||||
| 22 | Cup holder support, lower section | 1 | 51169122656 | $8.67 | Shop at ECS Tuning | |||||
| 23 | Front CAN holder | 1 | 51169122655 | $39.23 | Shop at ECS Tuning | |||||
