Underhood shield for BMW 1 Series E82 125i (2013)

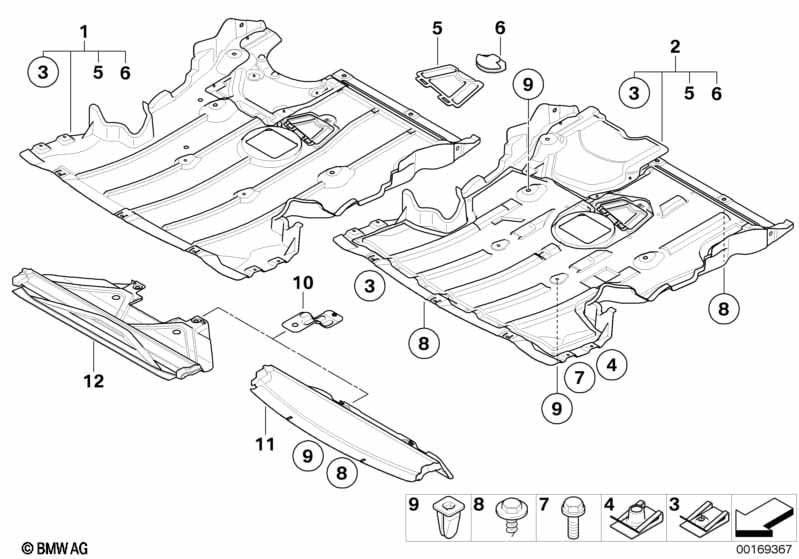

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with M Aerodynamics package and Skid plate national versions |
S715A=No S8SDA=Yes |
|||||||||
| 01 | Underhood shield | 1 | 51752996780 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package and Skid plate national versions |
S715A=No S8SDA=No |
|||||||||
| 01 | Underhood shield | 1 | 51752996364 | $170.57 | Shop at ECS Tuning | |||||
| 03 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 10 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package and Skid plate national versions |
S715A=No S8SDA=Yes |
|||||||||
| 04 | C-clip nut | M6-ZNS3 | 3 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Cover, engine compartment screening | 1 | 51757140983 | $6.91 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Skid plate national versions |
S715A=No S8SDA=Yes |
|||||||||
| 05 | Cover, engine compartment screening | 1 | 51757163901 | Shop at ECS Tuning | ||||||
| 06 | Rotary clip | 1 | 51757163899 | $1.44 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Skid plate national versions |
S715A=No S8SDA=Yes |
|||||||||
| 06 | Rotary clip | 1 | 51757163900 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M6X20 | 3 | 07147199289 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hex head screw with washer | ST4,8X16MM | 19 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | L=15MM, DMAX=12 | 8 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Engine compartment protection backet | 2 | 51757128501 | $6.74 | Shop at ECS Tuning | |||||
| 12 | Radiator seal | 1 | 51757128503 | $15.85 | Shop at ECS Tuning | |||||
