M Trim, rear for BMW 1 Series E82 135i (2013)

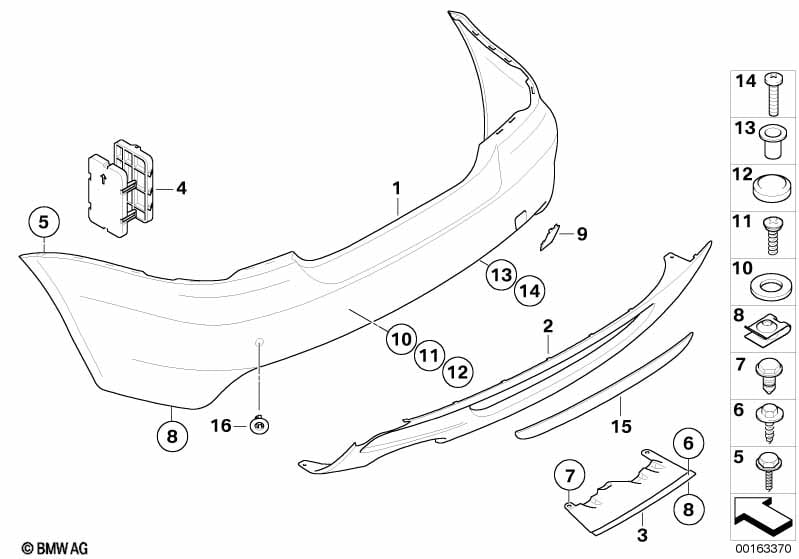

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, primed, rear | - M - / PDC | 1 | 51127892599 | $508.48 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122410020 | Shop at ECS Tuning | |||||
| -- | Kit dummy trim | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | - M - / PDC | 1 | 51127892599 | $508.48 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122410020 | Shop at ECS Tuning | |||||
| 02 | Trim panel, bumper, rear, bottom | -M- | 1 | 51128045506 | $73.77 | Shop at ECS Tuning | ||||
| 03 | Covering Lower | 1 | 51127183874 | $12.70 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 03 | Cover for tow hitch, lower | 1 | 51127188598 | $8.03 | Shop at ECS Tuning | |||||
| 04 | Rear ventilation | 2 | 64226937994 | $15.33 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Hex head screw with washer | ST4,8X16MM | X | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | TS5X17 SW8 D=22 | X | 07149126886 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X12 | 2 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 08 | C-clip nut, self-locking | TS5 | X | 07147330004 | Shop at ECS Tuning | |||||
| 09 | Flap, towing eye, primed | -M- | 1 | 51127892601 | $8.32 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 09 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51120036270 | ENDED | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 10 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 11 | Phillips screw f plastic material | TS 5X8 | 2 | 07146959895 | $0.29 | Shop at ECS Tuning | ||||
| 12 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Covering cap | EUROPABLAU | X | 51187060798 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Covering cap | GOLDGELB | X | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING Repair solution |
||||||||||
| 13 | Blind rivet nut, flat headed | M5 | 2 | 51138400227 | $2.77 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING REGISTRATION PLATE MOUNTING Repair solution |
||||||||||
| 14 | Screw | M5X20 | 2 | 46612315376 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Cover, bumper, rear | -M- | 1 | 51128045456 | $20.57 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 16 | Set of mounts for PDC sensor, rear | 1 | 51127906476 | $16.65 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
