Alum. interior strips ground lengthwise for BMW 3 Series E92 328i (2010)

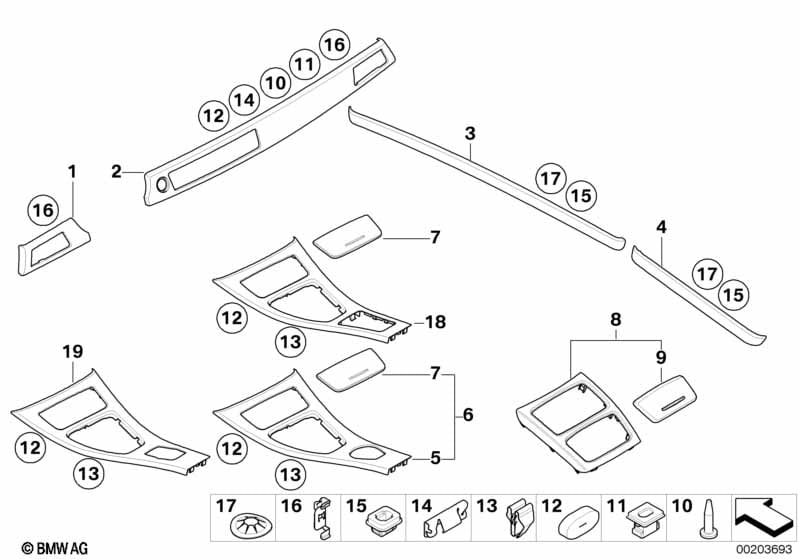

This Alum. interior strips ground lengthwise technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 01 | Cover, dashboard, aluminium, left | ALU FEINSCHLIFF | 1 | 51459147390 | $77.71 | Shop at ECS Tuning | ||||
| 02 | Cover, dashboard, aluminium, right | ALU FEINSCHLIFF | 1 | 51459147391 | $165.30 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front left | ALU FEINSCHLIFF | 1 | 51419173693 | $82.42 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front right | ALU FEINSCHLIFF | 1 | 51419173694 | $82.42 | Shop at ECS Tuning | ||||
| 04 | Decor strip, left | ALU FEINSCHLIFF | 1 | 51439173695 | $65.02 | Shop at ECS Tuning | ||||
| 04 | Decor strip, right | ALU FEINSCHLIFF | 1 | 51439173696 | $65.02 | Shop at ECS Tuning | ||||
| 07 | Cover | ALU/FEINSCHLIFF | 1 | 51169145152 | $76.17 | Shop at ECS Tuning | ||||
| 08 | Cover, rear console, front | ALU/FEINSCHLIFF | 1 | 51169147394 | $190.27 | Shop at ECS Tuning | ||||
| 09 | Cover | ALU/FEINSCHLIFF | 1 | 51169147396 | $76.17 | Shop at ECS Tuning | ||||
| 10 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 16 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 18 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145141 | $284.47 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished and Navigation system Professional |
S4B9A=Yes S609A=Yes |
|||||||||
| 19 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145143 | $284.47 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4B9A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 19 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145143 | $284.47 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4B9A=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 19 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145143 | $284.47 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4B9A=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 19 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145143 | $284.47 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 328i Alum. interior strips ground lengthwise?
- This technical diagram illustrates the Alum. interior strips ground lengthwise within the Vehicle trim group for the 3 Series E92 328i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Cover, dashboard, aluminium, left (Part #51459147390).
- Which models use the hardware listed in this Alum. interior strips ground lengthwise?
- The hardware and components featured in the Alum. interior strips ground lengthwise are specific to the 3 Series E92 328i produced during 2010. These technical specifications ensure that parts like the Cover, dashboard, aluminium, left (51459147390) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alum. interior strips ground lengthwise assembly?
- Each item in the Alum. interior strips ground lengthwise corresponds to the numbered list below the illustration. For the 3 Series E92 328i, you can identify the Cover, dashboard, aluminium, left by locating its position on the schematic, which then links to the official BMW part number 51459147390 for the Vehicle trim section.
