Interior strips, high-gloss, grey for BMW 3 Series E93 LCI 328i (2013)

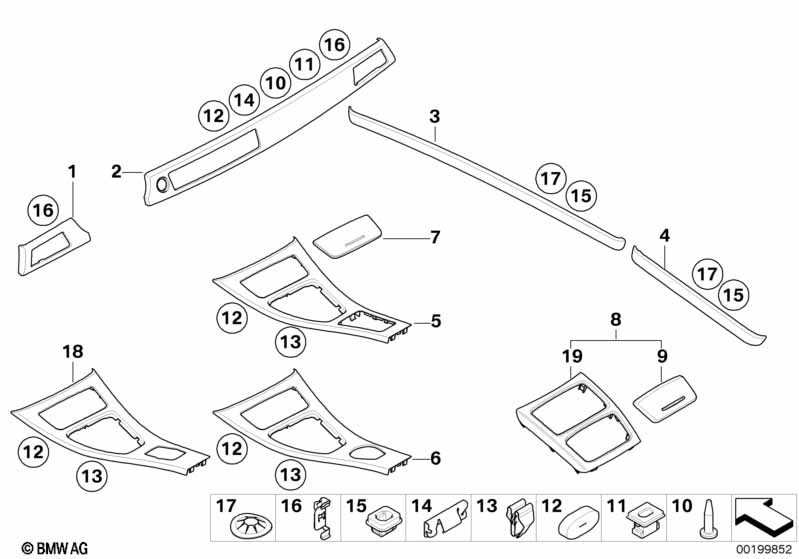

This Interior strips, high-gloss, grey technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior strips, high-gloss, grey |
S4BXA=Yes |
|||||||||
| 01 | Decorative strip, dashboard left | SPACEGRAU | 1 | 51459171167 | $32.68 | Shop at ECS Tuning | ||||
| 02 | Decorative strip, dashboard right | SPACEGRAU | 1 | 51459171169 | $81.69 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front left | SPACEGRAU | 1 | 51419173689 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front right | SPACEGRAU | 1 | 51419173690 | $37.98 | Shop at ECS Tuning | ||||
| 04 | Decor strip, left | SPACEGRAU | 1 | 51439173691 | $43.20 | Shop at ECS Tuning | ||||
| 04 | Decor strip, right | SPACEGRAU | 1 | 51439173692 | $43.20 | Shop at ECS Tuning | ||||
| 07 | Cover | SPACEGRAU | 1 | 51169170860 | $37.00 | Shop at ECS Tuning | ||||
| 08 | Cover, rear console, front | SPACEGRAU | 1 | 51169174925 | Shop at ECS Tuning | |||||
| 09 | Cover | SPACEGRAU | 1 | 51169174926 | $76.17 | Shop at ECS Tuning | ||||
| 10 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 16 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, high-gloss, grey and Navigation system Professional |
S4BXA=Yes S609A=Yes |
|||||||||
| 18 | Cover centre console, front | SPACEGRAU | 1 | 51169170953 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, high-gloss, grey |
S4BXA=Yes |
|||||||||
| 19 | Cover, rear console, front | SPACEGRAU | 1 | 51169174925 | Shop at ECS Tuning | |||||
