Lateral trim panel rear for BMW 1 Series E88 135i (2013)

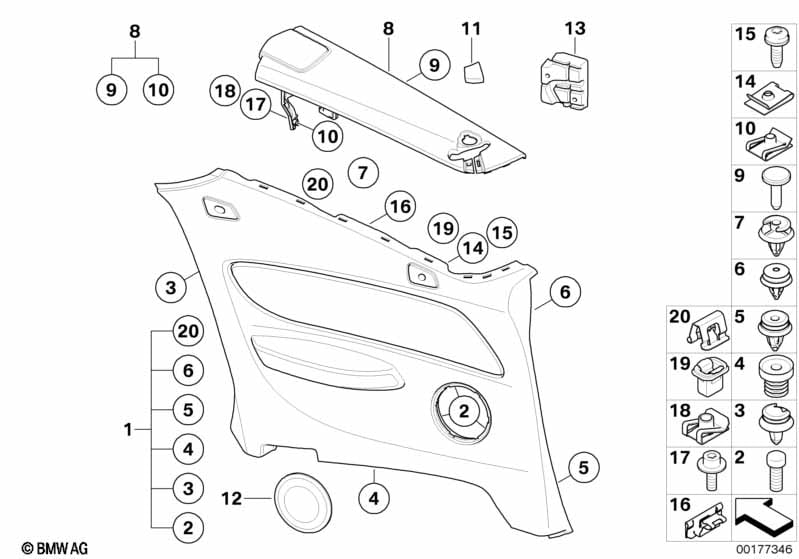

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SCHWARZ | 1 | 51437896049 | Shop at ECS Tuning | |||||
| 01 | Trim panel cloth rear right | SCHWARZ | 1 | 51437896050 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black/blue' |
GCNL=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SCHWARZ/BLAU | 1 | 03/2012 | 51438048815 | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | SCHWARZ/BLAU | 1 | 03/2012 | 51438048816 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | PERLGRAU | 1 | 03/2012 | 51437318585 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | PERLGRAU | 1 | 03/2012 | 51437318586 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51439147711 | +core | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51439147712 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | LEMON | 1 | 09/2008 | 51437234271 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | LEMON | 1 | 09/2008 | 51437234272 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | KORALLROT | 1 | 09/2008 | 51437234269 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | KORALLROT | 1 | 09/2008 | 51437234270 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | ALASKAGRAU | 1 | 09/2010 | 51437285507 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | ALASKAGRAU | 1 | 09/2010 | 51437285508 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fabric "Network/magma-braun" |
AUDR=Yes |
|||||||||
| 01 | Trim panel cloth rear left | MAGMABRAUN | 1 | 03/2011 | 51437294059 | NoS | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | MAGMABRAUN | 1 | 03/2011 | 51437294060 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | TABAK | 1 | 03/2013 | 51437339349 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | TABAK | 1 | 03/2013 | 51437339350 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear left | TABAK | 1 | 03/2013 | 51437339351 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | TABAK | 1 | 03/2013 | 51437339352 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | TERRA | 1 | 09/2008 | 51437234267 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | TERRA | 1 | 09/2008 | 51437234268 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BEIGE | 1 | 09/2008 | 51437234273 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | BEIGE | 1 | 09/2008 | 51437234274 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BEIGE | 1 | 09/2008 | 51437234265 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | BEIGE | 1 | 09/2008 | 51437234266 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 01 | Trim panel cloth rear left | MONACOBLAU | 1 | 51439147707 | +core | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | MONACOBLAU | 1 | 51439147708 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ORANGE | 1 | 51439147713 | +core | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | ORANGE | 1 | 51439147714 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51439147705 | +core | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51439147706 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/oyster |
LWCX=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | OYSTER | 1 | 03/2011 | 51437294063 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | OYSTER | 1 | 03/2011 | 51437294064 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Fabric/Sensatec 'Flashpoint/black/blue' |
S688A=Yes GCNL=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SCHWARZ/BLAU | 1 | 03/2012 | 51438048817 | NoS | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | SCHWARZ/BLAU | 1 | 03/2012 | 51438048818 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Leather "Boston"/lemon |
S688A=Yes LWB7=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | LEMON | 1 | 09/2008 | 51437234287 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | LEMON | 1 | 09/2008 | 51437234288 | Shop at ECS Tuning | ||||
| For vehicles with Radio BMW Reverse RDS and Fabric "Network/magma-braun" |
S668A=Yes AUDR=Yes |
|||||||||
| 01 | Trim panel cloth rear left | MAGMABRAUN | 1 | 03/2011 | 51437294061 | NoS | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | MAGMABRAUN | 1 | 03/2011 | 51437294062 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Leather Boston/oyster |
S688A=Yes LWCX=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | OYSTER | 1 | 03/2011 | 51437294065 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | OYSTER | 1 | 03/2011 | 51437294066 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Leather Boston/perl-grau/contrast blue |
S688A=Yes LWNH=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | PERLGRAU | 1 | 03/2012 | 51437318587 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | PERLGRAU | 1 | 03/2012 | 51437318588 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Leather "Boston"/alaska-grey |
S688A=Yes LWAL=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | ALASKAGRAU | 1 | 09/2010 | 51437285509 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | ALASKAGRAU | 1 | 09/2010 | 51437285510 | NoS | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric/Sensatec 'Flashpoint/black' |
S677A=Yes S688A=Yes GCSW=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SCHWARZ | 1 | 09/2009 | 51437896707 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | SCHWARZ | 1 | 09/2009 | 51437896708 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather "Boston"/korall-red |
S677A=Yes S688A=Yes LWD1=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | KORALLROT | 1 | 09/2009 | 51437234285 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | KORALLROT | 1 | 09/2009 | 51437234286 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric "Network"/anthracite |
S677A=Yes S688A=Yes AUAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 09/2009 | 51439147745 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 09/2009 | 51439147746 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Boston/black/blue" or Leather Boston/black/contrast white or Leather "Boston"/ black |
LWNL=Yes LWNM=Yes LWSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 09/2008 | 51437234261 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 09/2008 | 51437234262 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather "Boston/terra" |
S677A=Yes S688A=Yes LWB8=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | TERRA | 1 | 09/2009 | 51437234283 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | TERRA | 1 | 09/2009 | 51437234284 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather "Boston"/beige |
S677A=Yes S688A=Yes LWA5=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BEIGE | 1 | 09/2009 | 51437234281 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | BEIGE | 1 | 09/2009 | 51437234282 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric "Network"/Monaco blue |
S677A=Yes S688A=Yes AUD9=Yes |
|||||||||
| 01 | Trim panel cloth rear left | MONACOBLAU | 1 | 09/2009 | 51439147747 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | MONACOBLAU | 1 | 09/2009 | 51439147748 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric/leather 'Pearlpoint/anthracite' |
S677A=Yes S688A=Yes FHAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 09/2009 | 51439147751 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 09/2009 | 51439147752 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric/leather 'Pearlpoint/orange' |
S677A=Yes S688A=Yes FHF5=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ORANGE | 1 | 09/2009 | 51439147753 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ORANGE | 1 | 09/2009 | 51439147754 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather, "Boston/black/blue" or Leather Boston/black/contrast white or Leather "Boston"/ black |
S677A=Yes S688A=Yes LWNL=Yes LWNM=Yes LWSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 09/2009 | 51437234277 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 09/2009 | 51437234278 | Shop at ECS Tuning | ||||
| 02 | Threaded bolt | 6 | 51417122657 | $1.11 | Shop at ECS Tuning | |||||
| 03 | Clip Natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 04 | Stop buffer | 2 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
| 05 | Clip blue | 2 | 07147129317 | $0.66 | Shop at ECS Tuning | |||||
| 06 | Clip with seal ring | GRAU | 4 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 07 | Clip | GRAU | 2 | 51437001492 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Waist rail, side trim, rear left | 1 | 51439128773 | $77.76 | Shop at ECS Tuning | |||||
| 08 | Waist rail, side trim, rear right | 1 | 51439128774 | $77.76 | Shop at ECS Tuning | |||||
| 09 | Mounting bolt | 4 | 51439147825 | $0.69 | Shop at ECS Tuning | |||||
| 10 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 11 | Cover, belt outlet, left | 1 | 51439128775 | $2.95 | Shop at ECS Tuning | |||||
| 11 | Cover, belt outlet, right | 1 | 51439128776 | $2.95 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and alaska-grey |
S676A=No S677A=No S688A=No AL=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | ALASKAGRAU | 1 | 51439147799 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | ALASKAGRAU | 1 | 51439147800 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system and alaska-grey |
S676A=Yes S677A=Yes S688A=Yes AL=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | ALASKAGRAU | 1 | 51439147807 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | ALASKAGRAU | 1 | 51439147808 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system and beige or lemon/beige |
S676A=Yes S677A=Yes S688A=Yes A5=Yes F6=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | BEIGE | 1 | 51439147809 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | BEIGE | 1 | 51439147810 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and beige or lemon/beige |
S676A=No S677A=No S688A=No A5=Yes F6=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | BEIGE | 1 | 51439147801 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | BEIGE | 1 | 51439147802 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system and anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or perl-grau/Kontrast blau or black / blue or Black |
S676A=Yes S677A=Yes S688A=Yes AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes NH=Yes NL=Yes SW=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | SCHWARZ | 1 | 51439147805 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | SCHWARZ | 1 | 51439147806 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and anthracite or beige or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or perl-grau/Kontrast blau or black / blue or Black |
S676A=No S677A=No S688A=No AT=Yes B4=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes NH=Yes NL=Yes SW=Yes |
|||||||||
| 12 | Trim, mid-range speaker left | SCHWARZ | 1 | 51439147797 | $10.51 | Shop at ECS Tuning | ||||
| 12 | Trim, mid-range speaker right | SCHWARZ | 1 | 51439147798 | $10.51 | Shop at ECS Tuning | ||||
| 13 | Crash pad, left | 1 | 51439147811 | $8.61 | Shop at ECS Tuning | |||||
| 13 | Crash pad, right | 1 | 51439147812 | $8.61 | Shop at ECS Tuning | |||||
| 14 | Body nut | 4 | 07129904241 | $0.24 | Shop at ECS Tuning | |||||
| 15 | Combi. fillister head self-tapping screw | 4 | 07149154720 | $0.44 | Shop at ECS Tuning | |||||
| 16 | Clamp | 0,8MM | 6 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 17 | Screw | ISA M5X16 | 2 | 07129905512 | $0.47 | Shop at ECS Tuning | ||||
| 18 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 19 | Plug-in retainer | 4 | 07149128777 | $0.89 | Shop at ECS Tuning | |||||
| 20 | Clamp | 16 | 07149172157 | $0.57 | Shop at ECS Tuning | |||||
