Trim panel A-column/Int.windshield panel for BMW 1 Series E88 135i (2010)

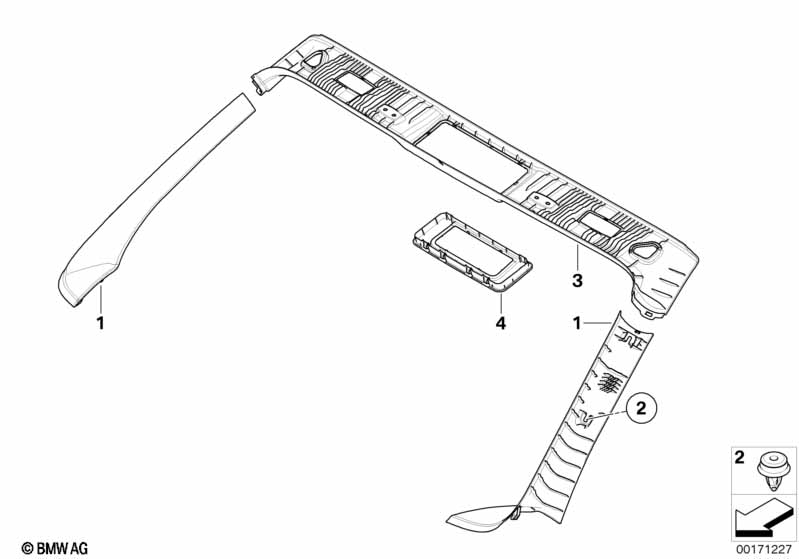

This Trim panel A-column/Int.windshield panel technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left column A cover | 1 | 51436962889 | $27.90 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | 1 | 51436962890 | $27.90 | Shop at ECS Tuning | |||||
| 02 | Clip blue | 4 | 07147129317 | $0.66 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 03 | Windshield frame cover | 1 | 51446962895 | $94.94 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=No |
|||||||||
| 03 | Windshield frame cover | 1 | 51449122817 | $94.94 | Shop at ECS Tuning | |||||
