Reinforcement, body for BMW 1 Series E88 118i (2013)

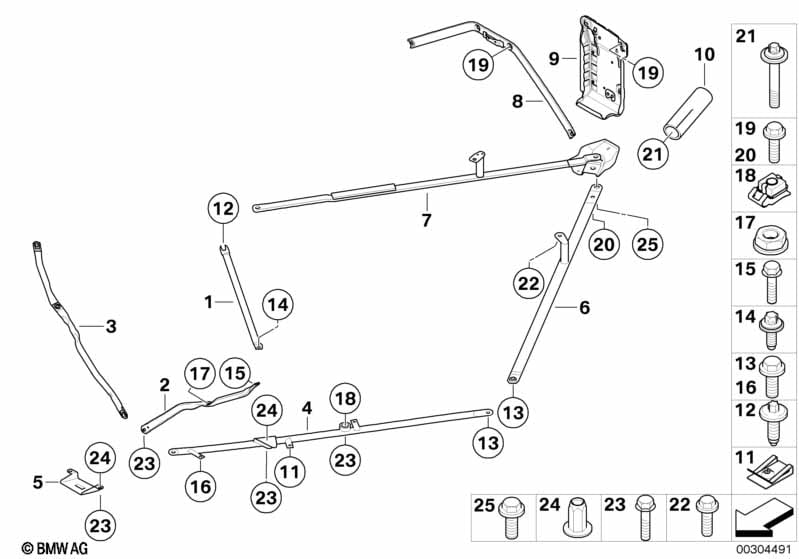

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring dome strut, left | 1 | 51617167643 | $14.52 | Shop at ECS Tuning | |||||
| 01 | Spring dome strut, right | 1 | 51617167644 | $14.52 | Shop at ECS Tuning | |||||
| 02 | Diagonal rod, front, left | 1 | 51617135647 | $32.52 | +core | Shop at ECS Tuning | ||||
| 03 | Diagonal rod, front, right | 1 | 51617135648 | $32.52 | +core | Shop at ECS Tuning | ||||
| 04 | V-brace, front subframe, left | 1 | 51717185139 | $100.95 | Shop at ECS Tuning | |||||
| 04 | V-brace, front subframe, right | 1 | 51717185140 | $100.95 | Shop at ECS Tuning | |||||
| 05 | Protective runner | 1 | 51617046337 | $3.52 | Shop at ECS Tuning | |||||
| 06 | Pull rod left | 1 | 51617239861 | $62.63 | Shop at ECS Tuning | |||||
| 07 | Pull rod right | 1 | 51617239862 | $62.63 | Shop at ECS Tuning | |||||
| 08 | Rod | 1 | 51617166358 | $72.89 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 08 | Rod | 1 | 51617201832 | $72.89 | Shop at ECS Tuning | |||||
| 09 | Cargo guard plate, left | 1 | 51717187481 | $45.67 | Shop at ECS Tuning | |||||
| 09 | Cargo guard plate, right | 1 | 51717187482 | $45.67 | Shop at ECS Tuning | |||||
| 10 | Vibration damper | 1 | 51617210768 | Shop at ECS Tuning | ||||||
| 11 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 6 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 12 | ASA-Bolt with circlip | M12X1.5X39 | 1 | 07146954965 | $2.78 | Shop at ECS Tuning | ||||
| 13 | Hexagon screw with flange | M12X1,5X35-10.9 | 2 | 07147203503 | $1.75 | Shop at ECS Tuning | ||||
| 14 | Torx bolt | M10X16-10.9- | 2 | 07146963730 | $1.53 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M10X25-10.9ZNS3 | 5 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M12X30 | 2 | 07119905502 | $3.44 | Shop at ECS Tuning | ||||
| 17 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Cage nut | 2 | 31116768715 | $1.82 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M10X25-10.9ZNS3 | 4 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 20 | Hex bolt with washer | M10X25-10.9ZNS3 | 1 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M10X40 | 2 | 07147145742 | $2.25 | Shop at ECS Tuning | ||||
| 22 | Hex bolt with washer | M10X25-10.9ZNS3 | 2 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 23 | Hex screw with collar | M10X33-10.9 | 9 | 33326768354 | $1.14 | Shop at ECS Tuning | ||||
| 24 | Blind rivet nut, flat headed | M10 | 4 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| 25 | Hexagon screw with flange | M12X1,5X35-10.9 | 1 | 07147203503 | $1.75 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 118i Reinforcement, body?
- This technical diagram illustrates the Reinforcement, body within the Vehicle trim group for the 1 Series E88 118i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Spring dome strut, left (Part #51617167643).
- Which models use the hardware listed in this Reinforcement, body?
- The hardware and components featured in the Reinforcement, body are specific to the 1 Series E88 118i produced during 2013. These technical specifications ensure that parts like the Spring dome strut, left (51617167643) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reinforcement, body assembly?
- Each item in the Reinforcement, body corresponds to the numbered list below the illustration. For the 1 Series E88 118i, you can identify the Spring dome strut, left by locating its position on the schematic, which then links to the official BMW part number 51617167643 for the Vehicle trim section.
