Cover door sill / wheel arch for BMW 3 Series E90 LCI 325i (2011)

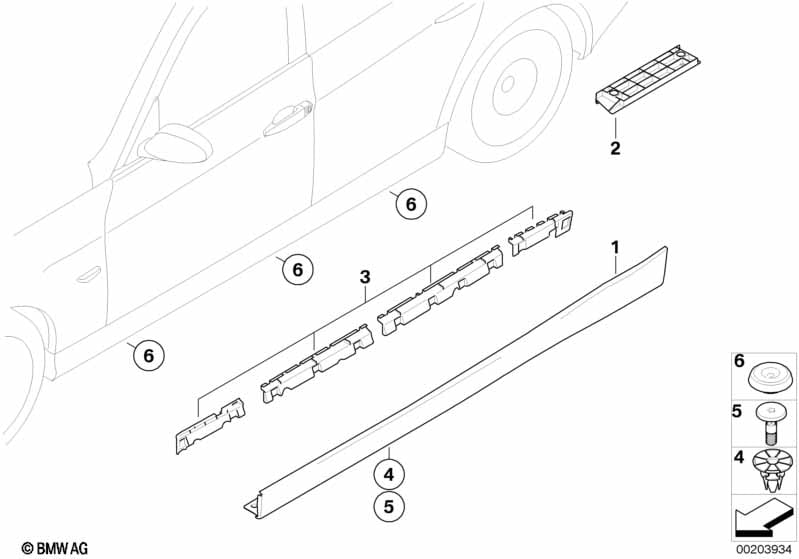

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 09/2008 | 51777202653 | $144.98 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | 1 | 09/2008 | 51777202654 | $144.98 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 09/2008 | 51770037059 | ENDED | Shop at ECS Tuning | |||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 09/2008 | 51770037060 | ENDED | Shop at ECS Tuning | |||
| 02 | Impact protection, left sill | 1 | 09/2008 | 51777146729 | $5.20 | Shop at ECS Tuning | ||||
| 02 | Impact protection, right sill | 1 | 09/2008 | 51777146730 | $5.20 | Shop at ECS Tuning | ||||
| 03 | Set of retainer strips, left | 1 | 09/2008 | 51777224455 | $13.20 | Shop at ECS Tuning | ||||
| 03 | Set of retainer strips, right | 1 | 09/2008 | 51777224456 | $13.20 | Shop at ECS Tuning | ||||
| 04 | Spacer clip | X | 09/2008 | 07147122912 | $0.48 | Shop at ECS Tuning | ||||
| 05 | Pin | X | 09/2008 | 07147122913 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=15MM | 6 | 09/2008 | 07147127540 | $0.26 | Shop at ECS Tuning | |||
| 06 | Blind plug | D=5MM | 6 | 09/2008 | 07147237083 | $0.26 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
