Trim and seals for door, rear for BMW 7 Series F02 LCI 740Li (2015)

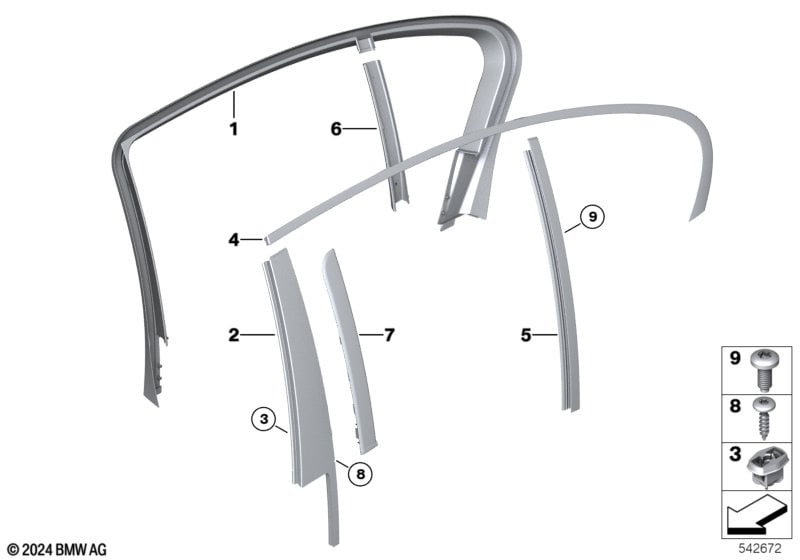

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, window frame, door rear left | 1 | 51337177855 | $47.58 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51337177856 | $47.58 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Cover, window frame, door rear left | 1 | 51357177857 | $47.58 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51357177858 | $47.58 | Shop at ECS Tuning | |||||
| 02 | Cover, column B, door, rear left | 1 | 51357177955 | $40.83 | Shop at ECS Tuning | |||||
| 02 | Cover, column B, door, rear right | 1 | 51357177956 | $40.83 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Cover, column B, door, rear left | GLANZSCHWARZ | 1 | 51357185233 | $54.28 | Shop at ECS Tuning | ||||
| 02 | Cover, column B, door, rear right | GLANZSCHWARZ | 1 | 51357185234 | $54.28 | Shop at ECS Tuning | ||||
| 03 | Clip | 8 | 51337177961 | Shop at ECS Tuning | ||||||
| 04 | Finisher window frame top RL door | 1 | 51357179117 | $131.20 | Shop at ECS Tuning | |||||
| 04 | Finisher window frame top RR door | 1 | 51357179118 | $131.20 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 04 | Finisher window frame top RL door | GLANZSCHWARZ | 1 | 51357185243 | $203.12 | Shop at ECS Tuning | ||||
| 04 | Finisher window frame top RR door | GLANZSCHWARZ | 1 | 51357185244 | $203.12 | Shop at ECS Tuning | ||||
| 05 | Window guide web cover left | 1 | 51357177957 | $25.58 | Shop at ECS Tuning | |||||
| 05 | Window guide web cover right | 1 | 51357177958 | $25.58 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Window guide web cover left | GLANZSCHWARZ | 1 | 51357185235 | $33.30 | Shop at ECS Tuning | ||||
| 05 | Window guide web cover right | GLANZSCHWARZ | 1 | 51357185236 | $33.30 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=No |
|||||||||
| 06 | Cover, window guide rail, left | 1 | 51357187815 | $15.47 | Shop at ECS Tuning | |||||
| 06 | Cover, window guide rail, right | 1 | 51357187816 | $15.47 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 06 | Cover, side window, left | 1 | 51359141425 | $11.79 | Shop at ECS Tuning | |||||
| 06 | Cover, side window, right | 1 | 51359141426 | $11.79 | Shop at ECS Tuning | |||||
| 07 | Inner trim, front left | 1 | 51359141421 | $13.84 | Shop at ECS Tuning | |||||
| 07 | Inner trim, front right | 1 | 51359141422 | $13.84 | Shop at ECS Tuning | |||||
| 07 | Outer trim, front left | 1 | 51359141423 | $13.84 | Shop at ECS Tuning | |||||
| 07 | Outer trim, front right | 1 | 51359141424 | $13.84 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | 4X16 | 4 | 07147177960 | Shop at ECS Tuning | |||||
| 09 | Oval head screw | 6 | 07149143562 | Shop at ECS Tuning | ||||||
