Fine woodgrain version, walnut trunk for BMW 3 Series E91 LCI 318i (2012)

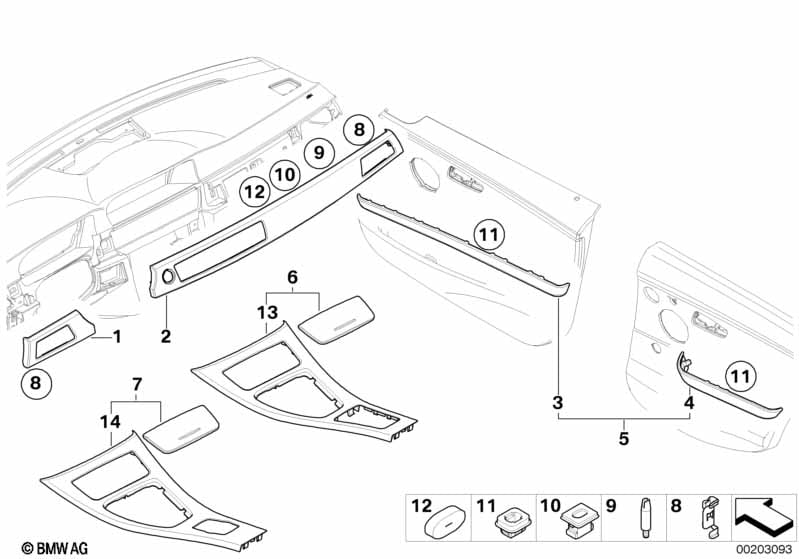

This Fine woodgrain version, walnut trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 01 | Cover, dashboard, nutwood, right | NUSSBAUM HELL | 1 | 09/2008 | 51459171172 | Shop at ECS Tuning | ||||
| 02 | Cover, dashboard, nutwood, left | NUSSBAUM HELL | 1 | 09/2008 | 51459171174 | Shop at ECS Tuning | ||||
| 03 | Trim piece door,wood, walnut, front left | NUSSBAUM HELL | 1 | 09/2008 | 51419169707 | $201.54 | Shop at ECS Tuning | |||
| 03 | Trim piece door, wood,walnut,front right | NUSSBAUM HELL | 1 | 09/2008 | 51419169708 | $201.54 | Shop at ECS Tuning | |||
| 04 | Trim piece door, wood, walnut, rear left | NUSSBAUM HELL | 1 | 09/2008 | 51429169711 | Shop at ECS Tuning | ||||
| 04 | Trim piece door, wood,walnut, rear right | NUSSBAUM HELL | 1 | 09/2008 | 51429169712 | Shop at ECS Tuning | ||||
| 05 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51419170203 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package |
S4A3A=Yes S441A=Yes |
|||||||||
| 06 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170876 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S441A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 07 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170896 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S441A=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 07 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170896 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S441A=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 07 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170896 | Shop at ECS Tuning | ||||
| 08 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Threaded bolt | D=6X30 | 7 | 51458266813 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170921 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 14 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170939 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 14 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170939 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 14 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170939 | Shop at ECS Tuning | ||||
