Underhood shield for BMW 1 Series E88 135i (2010)

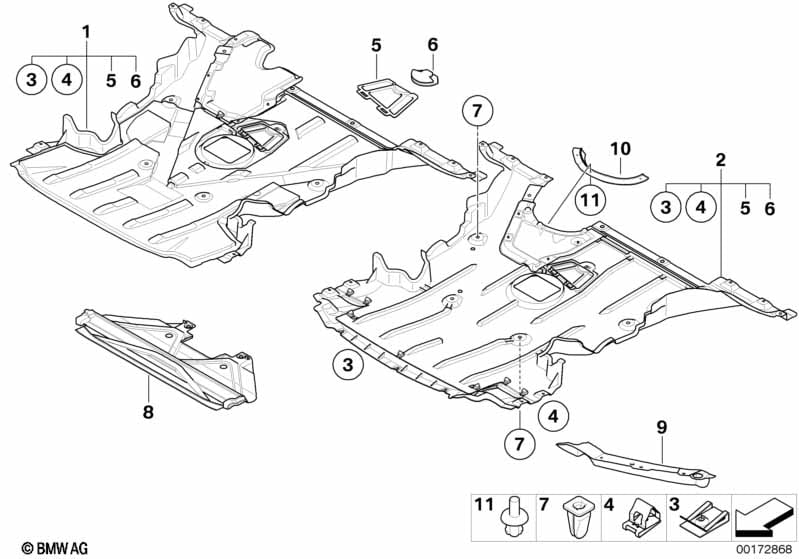

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Underhood shield | 1 | 51758046617 | $170.57 | Shop at ECS Tuning | |||||
| 03 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Cover, engine compartment screening | 1 | 51757140983 | $6.91 | Shop at ECS Tuning | |||||
| 06 | Rotary clip | 1 | 51757163899 | $1.44 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | L=15MM, DMAX=12 | 6 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 09 | Pressure lip, front left | -M- | 1 | 51758046127 | $11.73 | Shop at ECS Tuning | ||||
| 09 | Pressure lip front right | -M- | 1 | 51758046128 | $11.73 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Underhood shield?
- This technical diagram illustrates the Underhood shield within the Vehicle trim group for the 1 Series E88 135i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Underhood shield (Part #51758046617).
- Which models use the hardware listed in this Underhood shield?
- The hardware and components featured in the Underhood shield are specific to the 1 Series E88 135i produced during 2010. These technical specifications ensure that parts like the Underhood shield (51758046617) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Underhood shield assembly?
- Each item in the Underhood shield corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Underhood shield by locating its position on the schematic, which then links to the official BMW part number 51758046617 for the Vehicle trim section.
