Trim cover, rear for BMW 6 Series G32 GT 620d

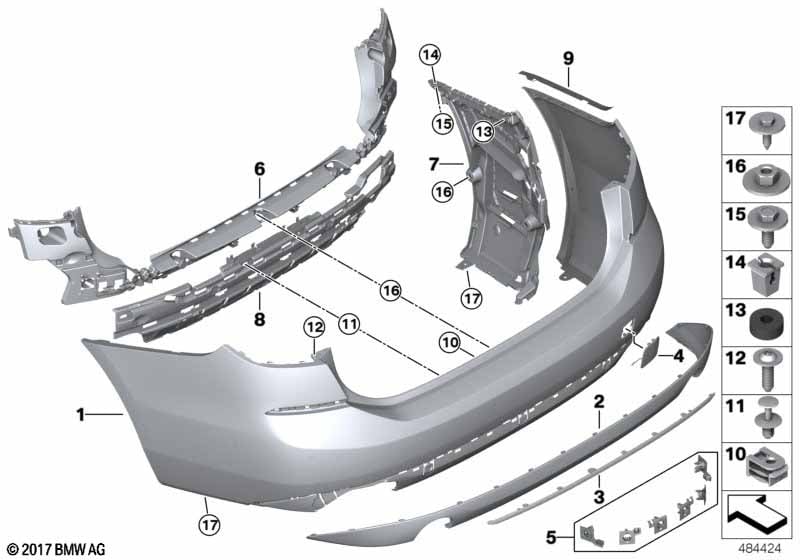

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 51127485844 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, primed, rear | PDC / PMA | 1 | 51127485845 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 6 | 66209283203 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 5.7.X | 1 | 51125A3F538 | Shop at ECS Tuning | |||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC / PMA | 1 | 51127485845 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC / PMA | 1 | 51127485845 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC / PMA | 1 | 51127485845 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=No S715A=No |
|||||||||
| 02 | Trim panel, bumper, rear, bottom | 1 | 51127387323 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Sport Line and Luxury Line and M Aerodynamics package |
L8AAA=No P7ACA=Yes P7S2A=Yes S715A=No |
|||||||||
| 02 | Trim panel, bumper, rear, bottom | LINES | 1 | 51127387324 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sport Line and Luxury Line and M Aerodynamics package |
L8AAA=No P7ACA=Yes P7S2A=No S715A=No |
|||||||||
| 02 | Trim panel, bumper, rear, bottom | LINES | 1 | 51127387324 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sport Line and Luxury Line and M Aerodynamics package |
L8AAA=No P7ACA=No P7S2A=Yes S715A=No |
|||||||||
| 02 | Trim panel, bumper, rear, bottom | LINES | 1 | 51127387324 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and M Aerodynamics package |
P7ACA=Yes S715A=No |
|||||||||
| 03 | Trim strip, bumper, rear | SPORT | 1 | 51127437773 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and M Aerodynamics package |
P7S2A=Yes S715A=No |
|||||||||
| 03 | Trim strip, bumper, rear | LUXURY | 1 | 51127437770 | Shop at ECS Tuning | |||||
| 04 | Cover, towing eye, primed, rear | 1 | 51127485846 | Shop at ECS Tuning | ||||||
| 05 | Kit, mount for PDC/PMA sensor, rear | 1 | 51127488983 | Shop at ECS Tuning | ||||||
| 06 | Guide, center rear | 1 | 51127387326 | Shop at ECS Tuning | ||||||
| 07 | Guide for bumper, side, left | 1 | 51127387327 | Shop at ECS Tuning | ||||||
| 07 | Guide for bumper, side, right | 1 | 51127387328 | Shop at ECS Tuning | ||||||
| 08 | Reinforcement for bumper, rear lower | 1 | 51127387325 | Shop at ECS Tuning | ||||||
| 09 | Abrasion guard wrap, side frame, left | 1 | 51127385765 | Shop at ECS Tuning | ||||||
| 09 | Abrasion guard wrap, side frame, right | 1 | 51127385766 | Shop at ECS Tuning | ||||||
| 10 | C-clip for plastic nut | TS5 | 3 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning | ||||||
| 12 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | 4 | 51127256354 | Shop at ECS Tuning | ||||||
| 14 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 16 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
