Cover door sill / wheel arch for BMW 6 Series G32 GT 620dX (2020)

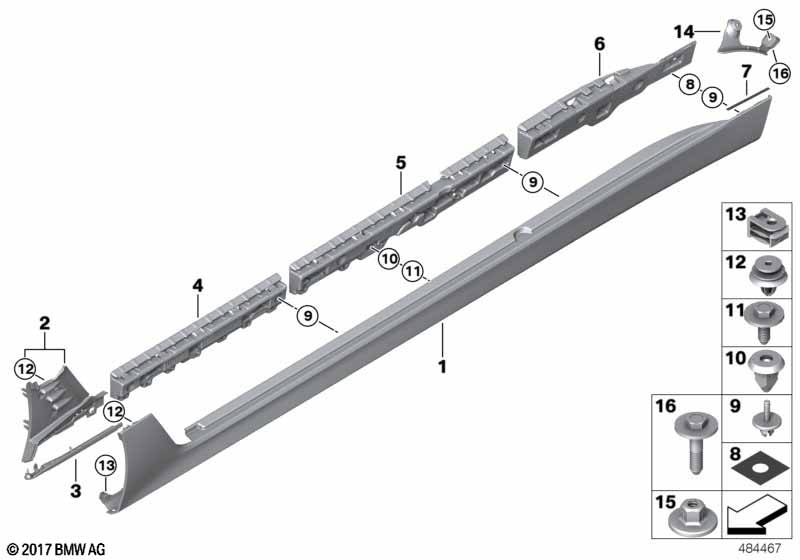

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| 01 | Rocker panel trim, primed, left | 1 | 51777485849 | Shop at ECS Tuning | ||||||
| 01 | Rocker panel trim, primed, right | 1 | 51777485850 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and M Aerodynamics package |
S4URA=Yes S715A=No |
|||||||||
| 01 | Rocker panel trim, primed, left | LIGHT | 1 | 51777480313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder, lamp module, left | 1 | 63177418335 | Shop at ECS Tuning | ||||||
| 01 | Rocker panel trim, primed, right | LIGHT | 1 | 51777480314 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder, lamp module, right | 1 | 63177418336 | Shop at ECS Tuning | ||||||
| 02 | Air duct, left | 1 | 51177387353 | Shop at ECS Tuning | ||||||
| 02 | Air duct, right | 1 | 51177387354 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and M Aerodynamics package |
S4URA=Yes S715A=No |
|||||||||
| 03 | Holder, lamp module, left | 1 | 63177418335 | Shop at ECS Tuning | ||||||
| 03 | Holder, lamp module, right | 1 | 63177418336 | Shop at ECS Tuning | ||||||
| 04 | Support strip, rocker panel, left front | 1 | 51177387355 | Shop at ECS Tuning | ||||||
| 04 | Support strip, rocker panel, right front | 1 | 51177387356 | Shop at ECS Tuning | ||||||
| 05 | Support strip, rocker panel, center left | 1 | 51177387357 | Shop at ECS Tuning | ||||||
| 05 | Support strip, rocker panel, center rgt | 1 | 51177387358 | Shop at ECS Tuning | ||||||
| 06 | Mount strip, rocker panel, rear left | 1 | 51177387359 | Shop at ECS Tuning | ||||||
| 06 | Mount strip, rocker panel, rear right | 1 | 51177387360 | Shop at ECS Tuning | ||||||
| 07 | Abrasion protection film for side frame | 2 | 51777385763 | Shop at ECS Tuning | ||||||
| 08 | Abrasion-resistant film | 2 | 51777489805 | Shop at ECS Tuning | ||||||
| 09 | Expanding rivet | 16 | 07147213303 | Shop at ECS Tuning | ||||||
| 10 | Expanding nut | 8X8 MM | 4 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 12 | Clip, grey | 12 | 07147460560 | Shop at ECS Tuning | ||||||
| 13 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
