Outside mirror for BMW 7 Series F02 750Li (2012)

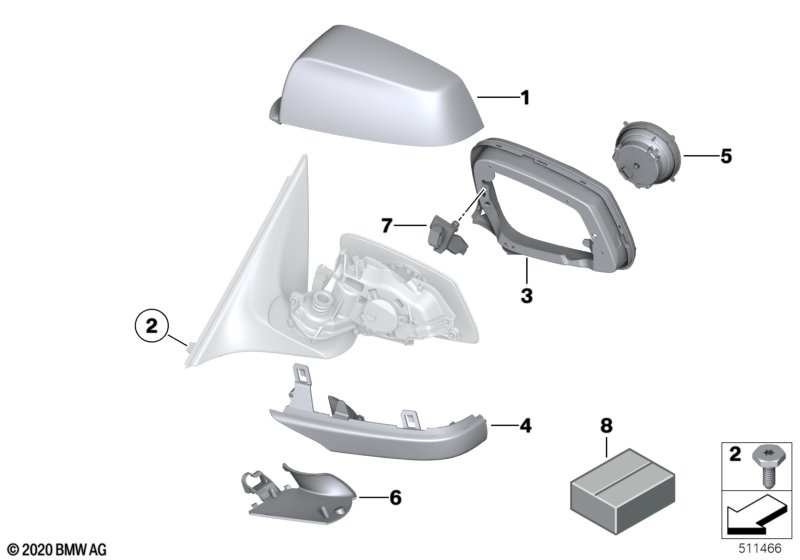

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Outside mirror cover cap, left, primed | 1 | 51167187431 | $51.32 | Shop at ECS Tuning | |||||
| 01 | Outside mirror cover cap, right, primed | 1 | 51167187432 | $51.32 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 01 | Outside mirror covering cap,painted left | CODE - UNI/MET. | 1 | 51162152445 | ENDED | Shop at ECS Tuning | ||||
| 01 | Outside mirror covering cap,painted rig. | CODE - UNI/MET. | 1 | 51162152446 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Combination Allen bolt | M6X16 | 6 | 07147175594 | Shop at ECS Tuning | |||||
| For vehicles with Lane-change warning and High gloss shadow line |
S5AGA=Yes S760A=Yes |
|||||||||
| 03 | Supporting ring left | SHADOW-LINE | 1 | 51167266033 | $63.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Lane change warning light left | 1 | 51167349207 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring right | SHADOW-LINE | 1 | 51167266034 | $63.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Lane change warning light right | 1 | 51167349208 | Shop at ECS Tuning | ||||||
| For vehicles with Lane-change warning and High gloss shadow line |
S5AGA=Yes S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266029 | $32.20 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lane change warning light left | 1 | 51167349207 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring right | 1 | 51167266030 | $32.20 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lane change warning light right | 1 | 51167349208 | Shop at ECS Tuning | ||||||
| For vehicles with Lane-change warning and High gloss shadow line |
S5AGA=No S760A=Yes |
|||||||||
| 03 | Supporting ring left | SHADOW-LINE | 1 | 51167266031 | $63.72 | Shop at ECS Tuning | ||||
| 03 | Supporting ring right | SHADOW-LINE | 1 | 51167266032 | Shop at ECS Tuning | |||||
| For vehicles with Lane-change warning and High gloss shadow line |
S5AGA=No S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Surround View and High gloss shadow line |
S5DLA=No S760A=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167266037 | $53.30 | Shop at ECS Tuning | ||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167266038 | $53.30 | Shop at ECS Tuning | ||||
| For vehicles with Surround View and High gloss shadow line |
S5DLA=No S760A=No |
|||||||||
| 04 | Housing lower section, left | 1 | 51167266035 | $26.55 | Shop at ECS Tuning | |||||
| 04 | Housing lower section, right | 1 | 51167266036 | $26.57 | Shop at ECS Tuning | |||||
| For vehicles with Surround View and High gloss shadow line |
S5DLA=Yes S760A=No |
|||||||||
| 04 | Housing lower section, left | KAMERA | 1 | 51167266375 | Shop at ECS Tuning | |||||
| 04 | Housing lower section, right | KAMERA | 1 | 51167266376 | Shop at ECS Tuning | |||||
| For vehicles with Surround View and High gloss shadow line |
S5DLA=Yes S760A=Yes |
|||||||||
| 04 | Housing lower section, left | TOP VIEW | 1 | 51167266379 | Shop at ECS Tuning | |||||
| 04 | Housing lower section, right | TOP VIEW | 1 | 51167266380 | Shop at ECS Tuning | |||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 06 | Set of covers mirror baseplate | SHADOW-LINE | 1 | 51167266081 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 06 | Set of covers mirror baseplate | 1 | 51167266080 | Shop at ECS Tuning | ||||||
| 07 | Lane change warning light left | 1 | 51167349207 | Shop at ECS Tuning | ||||||
| 07 | Lane change warning light right | 1 | 51167349208 | Shop at ECS Tuning | ||||||
| 08 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
