Trim panel leg room for BMW 7 Series F02 LCI 730Ld (2015)

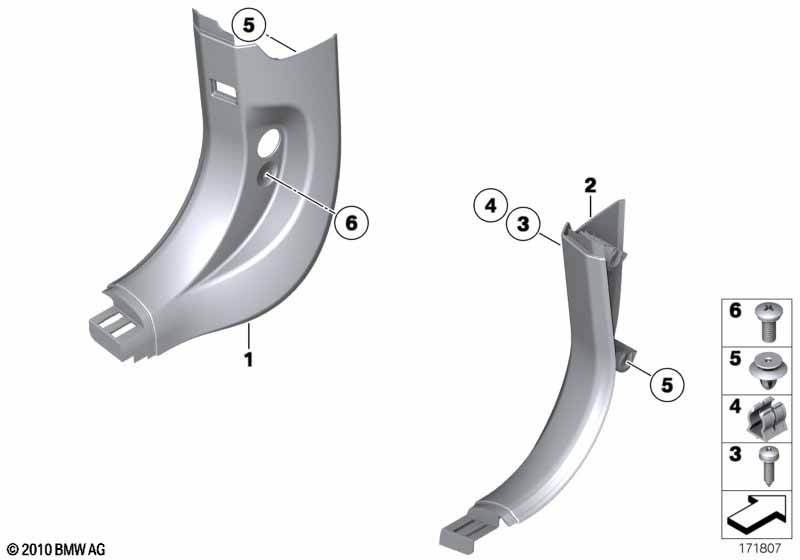

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 01 | Lateral trim panel, bottom front left | VENETOBEIGE | 1 | 51439172817 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather "Nappa/oyster" |
LCDH=Yes NADH=Yes |
|||||||||
| 01 | Lateral trim panel, bottom front left | OYSTER | 1 | 51439172821 | Shop at ECS Tuning | |||||
| For vehicles with elfenbein-weiss or Cloth "Tudor/anthrazit" or Leather "Dakota/oyster" or Leather "Dakota/sattel-braun light" or Leather "Dakota/barrique-rot" or Leather "Dakota"/schwarz or Leather "Nappa/oyster" or Leather "Nappa/sattel-braun" or Leather "Nappa/black" |
EW=Yes ARAT=Yes LCCX=Yes LCD5=Yes LCDK=Yes LCSW=Yes NACX=Yes NAD5=Yes NASW=Yes |
|||||||||
| 01 | Lateral trim panel, bottom front left | SCHWARZ | 1 | 51439121921 | Shop at ECS Tuning | |||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 02 | Lateral trim panel, bottom front right | VENETOBEIGE | 1 | 51439172818 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather "Nappa/oyster" |
LCDH=Yes NADH=Yes |
|||||||||
| 02 | Lateral trim panel, bottom front right | OYSTER | 1 | 51439172822 | Shop at ECS Tuning | |||||
| For vehicles with elfenbein-weiss or Cloth "Tudor/anthrazit" or Leather "Dakota/oyster" or Leather "Dakota/sattel-braun light" or Leather "Dakota/barrique-rot" or Leather "Dakota"/schwarz or Leather "Nappa/oyster" or Leather "Nappa/sattel-braun" or Leather "Nappa/black" |
EW=Yes ARAT=Yes LCCX=Yes LCD5=Yes LCDK=Yes LCSW=Yes NACX=Yes NAD5=Yes NASW=Yes |
|||||||||
| 02 | Lateral trim panel, bottom front right | SCHWARZ | 1 | 51439121922 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Sheet metal screw | ST4,8X19MM | 1 | 07119904350 | Shop at ECS Tuning | |||||
| 04 | Warning torch holder | 1 | 51437044418 | $2.23 | Shop at ECS Tuning | |||||
| 05 | Clip | 5 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
