M Trim, rear for BMW 6 Series G32 GT 630dX (2020)

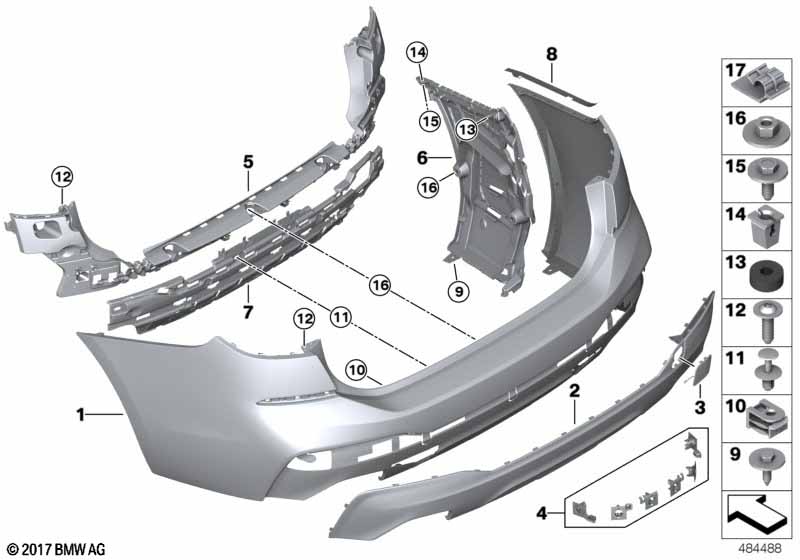

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Bumper trim panel, primed, rear | -M- | 1 | 51128094106 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B59792 | Shop at ECS Tuning | |||||
| 02 | Trim panel, bumper, rear painted | -M- | 1 | 51128078566 | Shop at ECS Tuning | |||||
| 03 | Flap, towing eye, painted | -M- | 1 | 51128069730 | Shop at ECS Tuning | |||||
| 04 | Kit, mount for PDC/PMA sensor, rear | -M- | 1 | 51128094107 | Shop at ECS Tuning | |||||
| 05 | Guide, center rear | 1 | 51127387326 | Shop at ECS Tuning | ||||||
| 06 | Guide for bumper, side, left | 1 | 51127387327 | Shop at ECS Tuning | ||||||
| 06 | Guide for bumper, side, right | 1 | 51127387328 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement for bumper, rear lower | 1 | 51127387325 | Shop at ECS Tuning | ||||||
| 08 | Abrasion guard wrap, side frame, left | 1 | 51127385765 | Shop at ECS Tuning | ||||||
| 08 | Abrasion guard wrap, side frame, right | 1 | 51127385766 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 10 | C-clip for plastic nut | TS5 | 3 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning | ||||||
| 12 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | 4 | 51127256354 | Shop at ECS Tuning | ||||||
| 14 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 16 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 17 | Clip | M PDC | 3 | 61137849481 | Shop at ECS Tuning | |||||
