Carrier instrument panel for BMW 7 Series F02 LCI 730Ld (2015)

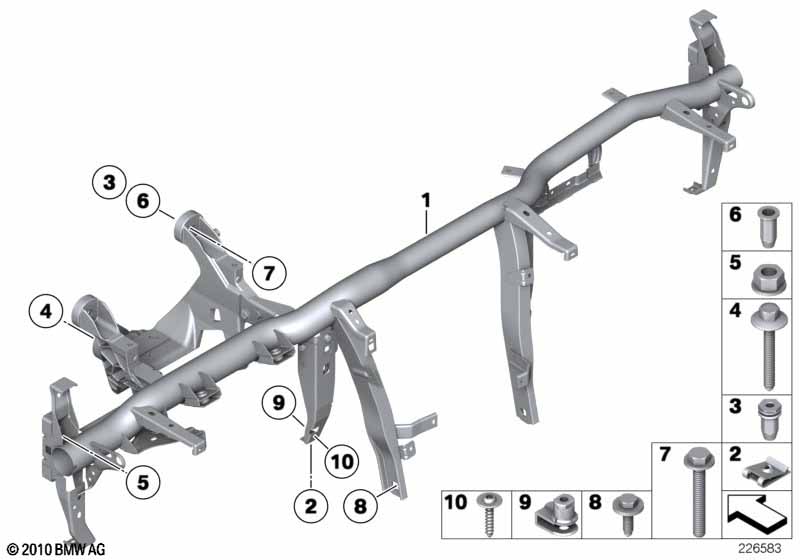

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting tube, instrument panel | 1 | 51459195220 | Shop at ECS Tuning | ||||||
| 03 | Compensator bush | 2 | 51459177499 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt | M8X58 | 1 | 07149180628 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | M8 | 4 | 07149202825 | Shop at ECS Tuning | |||||
| 06 | Blind rivet nut, flat headed | M12X1,5 LH | 2 | 07147135246 | $4.60 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X60 | 2 | 07147135317 | $1.53 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X30 | 2 | 07143428484 | $1.13 | Shop at ECS Tuning | ||||
| 09 | C-clip for plastic nut | X | 03/2010 | 07149200938 | Shop at ECS Tuning | |||||
| 09 | Clip | X | 03/2010 | 07149200940 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | 4X20 | X | 10/2014 | 07149240740 | Shop at ECS Tuning |
